VAICO
Timing Chain Kit
V10-10010-BEK
Compatible with your last search
VAICO Tech-Info
X-Ref
03C 109 158 A kit2
Required quantity
1

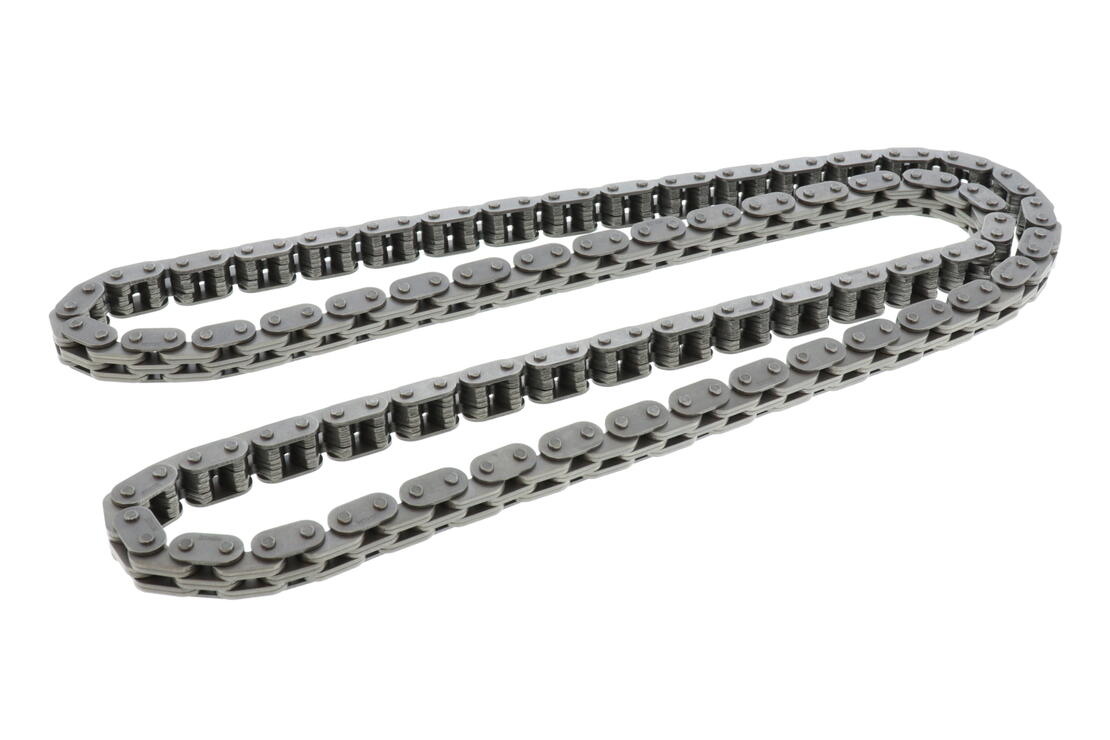

Chain Type
Closed chain, Silent Chain
Slim Set
Yes
Number of chain links
130
Driven Units
Camshaft
Supplementary Article/Supplementary Info
with slide rails, with chain tensioner
Article Description
EXPERT KITS +
EAN
4046001852299
Replaces the article
V10-10015-BEK
VAICO - EXPERTS FOR MOTOR CONTROL
VAICO timing chains are made of a metal alloy that can withstand all loads. In addition to tensile strength and fatigue strength, wear resistance is one of the most important quality features.
Precision-engineered chain links and pins ensure minimal elongation and permanent synchronization stability
Wear-optimized guide rails made of high-strength polymers reduce friction losses and minimize running noise
EXPERT KIT - incl. mounting material
Everything from one box! For a smooth changeover
A complete repair solution in our EXPERTKIT+ – All in one box solution!

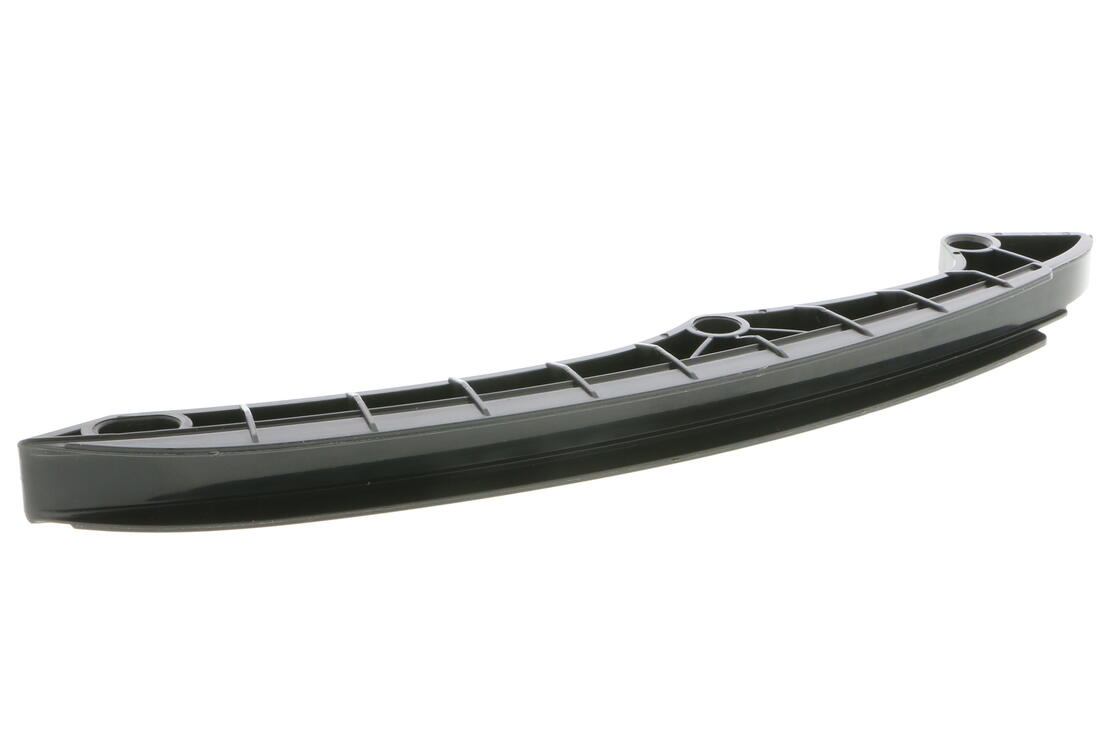

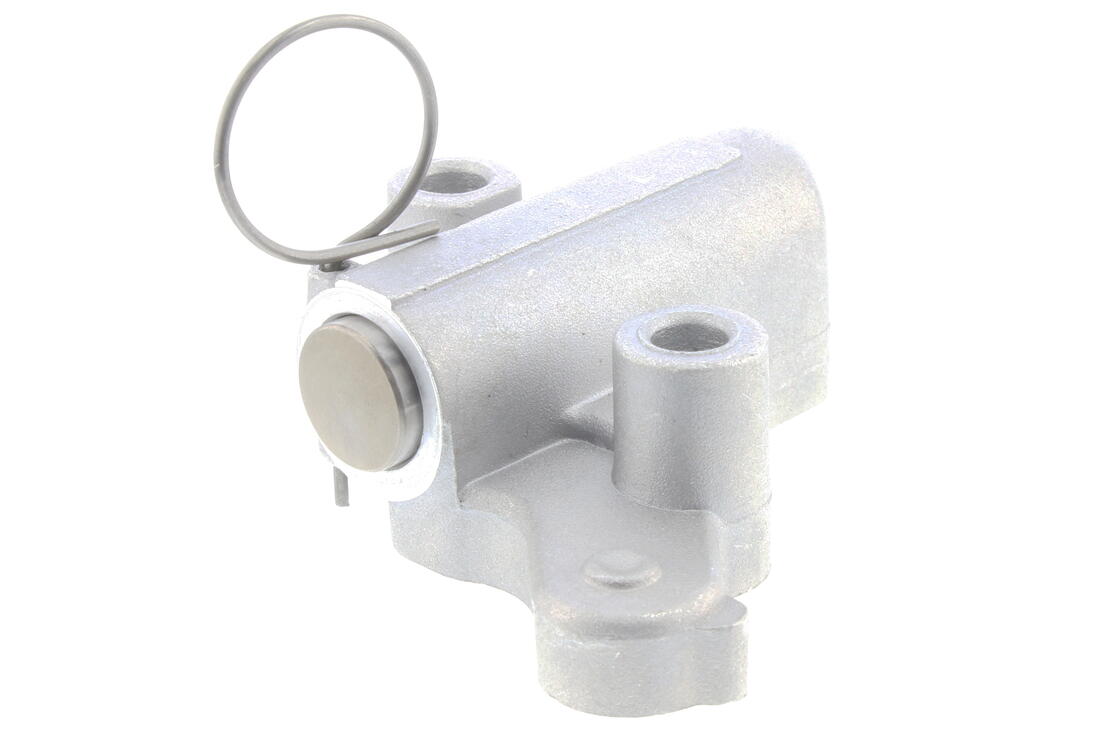

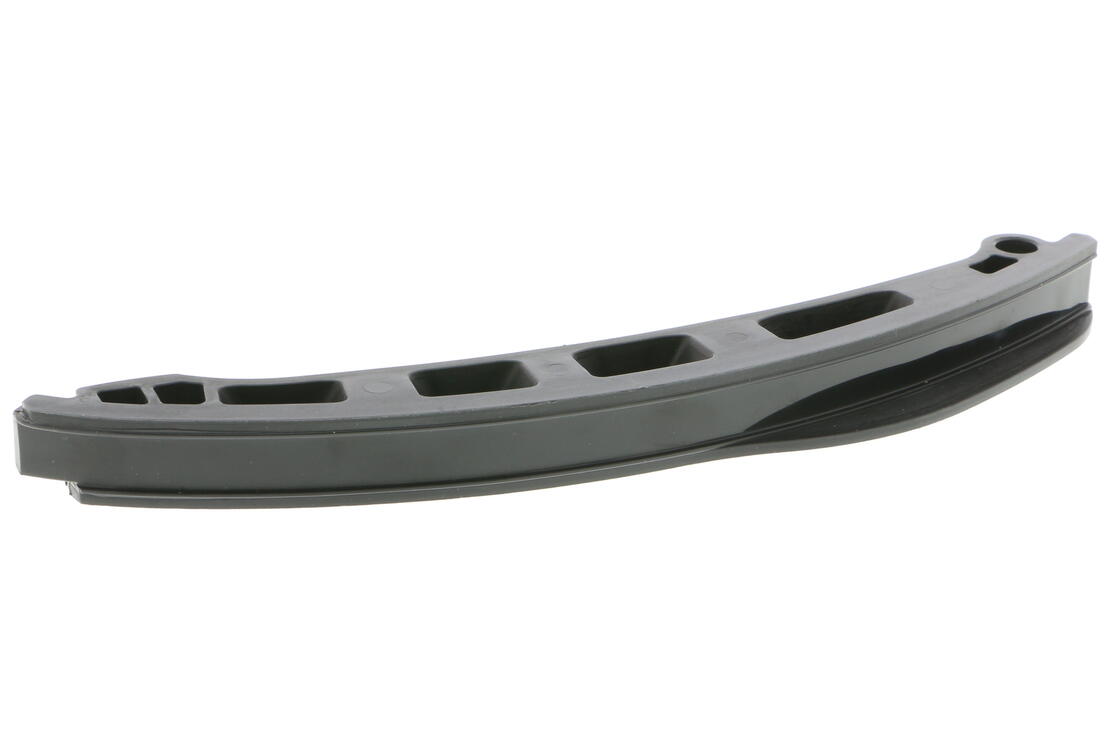

ACKOJA chain tensioners are designed to ensure consistent function at all times and under any load. Thanks to their high fitting accuracy, they are easy to install. For damping and noise minimization, the timing chain is guided over slide rails made of high-quality plastic. These have a resistant surface coating with high emergency running properties. The slide rails themselves are made of high-performance thermoplastic. The camshaft and crankshaft gears are manufactured with extreme precision. The end tips of the gears are specially shaped and treated to minimize wear.
| Manufacturer | Model | Type | Year of manufacture from |
|---|---|---|---|
| VW | PASSAT B7 (362) | 1.4 TSI | 08.2010 - 12.2014 |
| VW | PASSAT B7 (362) | 1.4 TSI EcoFuel | 08.2010 - 12.2014 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI | 08.2010 - 12.2014 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI EcoFuel | 08.2010 - 12.2014 |
| SEAT | ALHAMBRA (710, 711) | 1.4 TSI | 06.2010 - 04.2015 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.6 TDI | 04.2010 - 07.2015 |
| VW | GOLF VI Cabriolet (517) | 1.4 TSI | 11.2011 - 05.2016 |
| VW | GOLF VI Cabriolet (517) | 1.4 TSI | 03.2011 - 05.2016 |
| AUDI | A1 (8X1, 8XK) | 1.4 TFSI | 01.2011 - 04.2015 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI | 04.2011 - 12.2017 |
| VW | POLO | V (6R1, 6C1) 1.6 BiFuel | 01.2011 - 05.2014 |
| VW | PASSAT B7 (362) | 1.4 TSI MultiFuel | 11.2010 - 12.2014 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI MultiFuel | 11.2010 - 12.2014 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.6 LPG | 05.2011 - 05.2015 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.6 LPG | 05.2011 - 05.2015 |
| VW | TIGUAN (5N_) | 1.4 TSI | 05.2011 - 07.2018 |
| VW | TIGUAN (5N_) | 1.4 TSI 4motion | 05.2011 - 07.2018 |
| AUDI | A3 Cabriolet (8P7) | 1.4 TFSI | 02.2011 - 05.2013 |
| VW | PASSAT CC B6 (357) | 1.4 TSI MultiFuel | 01.2011 - 01.2012 |
| AUDI | A1 Sportback (8XA, 8XF) | 1.4 TFSI | 11.2011 - 04.2015 |
| AUDI | A1 Sportback (8XA, 8XF) | 1.4 TFSI | 11.2011 - 04.2015 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI | 05.2011 - 12.2017 |
| VW | POLO V Stufenheck (602, 604, 612, 614) | 1.6 | 11.2010 - 05.2015 |
| VW | POLO V Stufenheck (602, 604, 612, 614) | 1.6 | 05.2010 - 05.2022 |
| VW | POLO (9N_, 9A_) | 1.4 FSI | 02.2002 - 07.2006 |
| VW | TOURAN (1T1, 1T2) | 1.6 FSI | 02.2003 - 01.2007 |
| AUDI | A3 (8P1) | 1.6 FSI | 08.2003 - 09.2007 |
| VW | GOLF V (1K1) | 1.6 FSI | 10.2003 - 07.2008 |
| VW | GOLF V (1K1) | 1.4 FSI | 10.2003 - 07.2006 |
| SKODA | OCTAVIA II (1Z3) | 1.6 FSI | 02.2004 - 10.2008 |
| AUDI | A3 Sportback (8PA) | 1.6 FSI | 09.2004 - 09.2007 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.6 FSI | 02.2004 - 10.2008 |
| VW | GOLF PLUS V (5M1, 521) | 1.6 FSI | 12.2004 - 05.2008 |
| VW | PASSAT B6 (3C2) | 1.6 FSI | 03.2005 - 06.2008 |
| VW | PASSAT | B6 Variant (3C5) 1.6 FSI | 08.2005 - 06.2008 |
| VW | GOLF V (1K1) | 1.4 TSI | 11.2005 - 11.2008 |
| VW | EOS (1F7, 1F8) | 1.6 FSI | 06.2006 - 05.2008 |
| SKODA | ROOMSTER (5J7) | 1.6 | 09.2006 - 05.2015 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 TSI | 05.2006 - 06.2008 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 TSI | 05.2006 - 06.2008 |
| VW | GOLF V (1K1) | 1.4 TSI | 05.2006 - 11.2008 |
| VW | TOURAN (1T1, 1T2) | 1.4 TSI | 02.2006 - 05.2010 |
| VW | JETTA III (1K2) | 1.4 TSI | 07.2006 - 10.2010 |
| VW | JETTA III (1K2) | 1.4 TSI | 07.2006 - 10.2010 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 FSI | 07.2005 - 11.2006 |
| SKODA | FABIA II (542) | 1.6 | 04.2007 - 12.2014 |
| VW | GOLF V (1K1) | 1.4 TSI | 05.2007 - 11.2008 |
| VW | GOLF V Variant (1K5) | 1.4 TSI | 06.2007 - 07.2009 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 TSI | 06.2007 - 12.2013 |
| SKODA | FABIA II Combi (545) | 1.6 | 10.2007 - 12.2014 |
| VW | TIGUAN (5N_) | 1.4 TSI 4motion | 09.2007 - 07.2018 |
| VW | JETTA III (1K2) | 1.4 TSI | 05.2007 - 10.2010 |
| VW | BEETLE (5C1, 5C2) | 1.4 TSI | 10.2011 - 07.2016 |
| SEAT | ALTEA (5P1) | 1.4 TSI | 11.2007 - 07.2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.4 TSI | 11.2007 - 07.2015 |
| AUDI | A3 (8P1) | 1.4 TFSI | 09.2007 - 08.2012 |
| AUDI | A3 Sportback (8PA) | 1.4 TFSI | 09.2007 - 03.2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 TSI | 06.2008 - 12.2013 |
| VW | GOLF V Variant (1K5) | 1.4 TSI | 07.2008 - 07.2009 |
| VW | PASSAT | B6 Variant (3C5) 1.4 TSI | 05.2007 - 11.2010 |
| VW | PASSAT B6 (3C2) | 1.4 TSI | 05.2007 - 07.2010 |
| VW | TOURAN (1T1, 1T2) | 1.4 TSI | 11.2006 - 05.2010 |
| SEAT | LEON (1P1) | 1.4 TSI | 11.2007 - 12.2012 |
| VW | SCIROCCO III (137, 138) | 1.4 TSI | 05.2008 - 11.2017 |
| VW | SCIROCCO III (137, 138) | 1.4 TSI | 08.2008 - 11.2017 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.4 TSI | 02.2012 - 05.2015 |
| VW | GOLF VI (5K1) | 1.4 TSI | 10.2008 - 11.2012 |
| VW | GOLF VI (5K1) | 1.4 TSI | 10.2008 - 11.2012 |
| VW | TIGUAN (5N_) | 1.4 TSI | 05.2008 - 07.2018 |
| VW | POLO | V (6R1, 6C1) 1.4 (6R1) | 03.2009 - 05.2014 |
| VW | PASSAT B6 (3C2) | 1.4 TSI EcoFuel | 01.2009 - 07.2010 |
| VW | PASSAT | B6 Variant (3C5) 1.4 TSI EcoFuel | 01.2009 - 11.2010 |
| VW | TOURAN (1T1, 1T2) | 1.4 TSI EcoFuel | 05.2009 - 05.2010 |
| VW | JETTA III (1K2) | 1.4 TSI | 07.2008 - 10.2010 |
| VW | EOS (1F7, 1F8) | 1.4 TSI | 11.2007 - 08.2015 |
| VW | EOS (1F7, 1F8) | 1.4 TSI | 05.2008 - 08.2015 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.6 | 05.2008 - 03.2012 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.6 | 07.2008 - 05.2015 |
| SKODA | OCTAVIA II (1Z3) | 1.4 TSI | 11.2008 - 06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.4 TSI | 11.2008 - 06.2013 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.4 TSI | 06.2009 - 05.2015 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 TSI | 01.2009 - 05.2015 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 TSI Cupra | 06.2009 - 05.2015 |
| VW | GOLF VI Variant (AJ5) | 1.4 TSI | 07.2009 - 07.2013 |
| VW | GOLF VI Variant (AJ5) | 1.4 TSI | 07.2009 - 07.2013 |
| AUDI | A1 (8X1, 8XK) | 1.4 TFSI | 05.2010 - 04.2015 |
| VW | SHARAN (7N1, 7N2) | 1.4 TSI | 05.2010 - 11.2015 |
| VW | POLO | V (6R1, 6C1) 1.4 GTI | 05.2010 - 05.2014 |
| VW | TIGUAN (5N_) | 1.4 TSI | 08.2010 - 07.2018 |
| SKODA | FABIA II (542) | 1.4 TSI RS | 05.2010 - 12.2014 |
| SKODA | FABIA II Combi (545) | 1.4 TSI RS | 05.2010 - 12.2014 |
| SKODA | YETI (5L) | 1.4 TSI | 06.2010 - 05.2015 |
| SKODA | RAPID Spaceback (NH1) | 1.4 TSI | 07.2012 - 06.2015 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI | 04.2011 - 12.2017 |
| VW | TOURAN (1T3) | 1.4 TSI | 05.2010 - 05.2015 |
| VW | TOURAN (1T3) | 1.4 TSI EcoFuel | 05.2010 - 05.2015 |
| VW | TOURAN (1T3) | 1.4 TSI | 05.2010 - 05.2015 |
| VW | POLO | V (6R1, 6C1) 1.6 | 01.2010 - 05.2022 |
| SKODA | RAPID | (NH3, NK3, NK6) 1.4 TSI | 07.2012 - 06.2015 |
| VW | BEETLE Cabriolet (5C7, 5C8) | 1.4 TSI | 12.2011 - 07.2016 |
| VW | CC B7 (358) | 1.4 TSI | 11.2011 - 12.2016 |
| VW | PASSAT B7 (362) | 1.4 TSI | 11.2012 - 12.2014 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI | 11.2012 - 12.2014 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.6 | 12.2011 - 04.2018 |
| SEAT | TOLEDO IV (KG3) | 1.4 TSI | 07.2012 - 06.2015 |
| SEAT | TOLEDO IV (KG3) | 1.6 | 07.2013 - 06.2015 |
| SKODA | RAPID | (NH3, NK3, NK6) 1.6 | 07.2012 - 06.2015 |
| SKODA | RAPID Spaceback (NH1) | 1.6 | 07.2012 - 06.2015 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.6 | 03.2013 - 03.2016 |
| VW | CC B7 (358) | 1.4 TSI MultiFuel | 11.2011 - 12.2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.6 | 02.2012 - 05.2015 |
| SKODA | ROOMSTER (5J7) | 1.6 LPG | 06.2006 - 07.2010 |
| VW | SCIROCCO Van (137) | 1.4 TSi | 06.2008 - 05.2014 |
| VW | GOLF VI Van (5K1_) | 1.4 TSi | 10.2008 - 11.2012 |
| VW | GOLF VI Van (5K1_) | TSi | 10.2008 - 11.2012 |
| VW | POLO Van (6R) | 1.4 GTi | 05.2010 - 05.2014 |
| VW | GOLF VAN VI Variant (AJ5) | 1.4 TSi | 07.2009 - 10.2012 |
| VW | GOLF VAN VI Variant (AJ5) | 1.4 TSi | 07.2009 - 05.2014 |
| VW | GOLF PLUS Van (521) | 1.4 TSi | 01.2009 - 09.2012 |
| VW | GOLF PLUS Van (521) | 1.4 TSi | 01.2009 - 08.2014 |
| VW | PASSAT B7 Kasten/Kombi (365) | 1.4 TSi BlueMotion | 08.2010 - 12.2014 |
| Manufacturer | Comparison number |
|---|---|
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 507 AH |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 509 K |
| AUDI, SEAT, SKODA, VW | 3C109509M |
| AUDI, SEAT, SKODA, VW | 3C109469J |
| AUDI, SEAT, SKODA, VW | 3C109509K |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 507 L |
| AUDI, SEAT, SKODA, VW | 3C109509P |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 509 M |
| AUDI, SEAT, SKODA, VW | 3C1 095 07A H |
| AUDI, SEAT, SKODA, VW | 3C109469K |
| AUDI, SEAT, SKODA, VW | 3C1 095 07B A |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 509 L |
| AUDI, SEAT, SKODA, VW | 3C109158A |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 507 BA |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 507 M |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 469 J |
| AUDI, SEAT, SKODA, VW | 3C109158 |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 469 K |
| AUDI, SEAT, SKODA, VW | 3C109507L |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 158 |
| AUDI | 03C109507AHS1 |
| AUDI, SEAT, SKODA, VW | 3C109509L |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 509 P |
| AUDI, SEAT, SKODA, VW, VAG | 03C 109 158 A |
| SEAT, SKODA, VW, VAG | 03C 109 507 Q |
| SEAT, SKODA | 03C109507BAS1 |
| SEAT, SKODA, VW | 3C109507M |
| SEAT, SKODA, VAG | 3C 109 507 Q |
| SEAT, VW | 03C109158AS1 |
| SKODA | 03C109158S1 |
| VW, VAG | 03C 109 158 A kit2 |
| VW | 3C109507Q |
| VAG | 3C 109 507 M |
| VAG | 3C 109 507 R |
| VAG | 3C 109 509 M |
| VAG | 3C 109 158 A kit2 |
| VAG | 3C 109 158 |
| VAG | 3C 109 509 P |
| VAG | 3C 109 507 BA |
| VAG | 3C 109 509 L |
| VAG | 3C 109 507 AH |
| VAG | 03C 109 507 R |
| VAG | 3C 109 469 K |
| VAG | 3C 109 158 A |
| VAG | 3C 109 507 L |
| VAG | 3C 109 509 K |
| VAG | 3C 109 469 J |
