VAICO

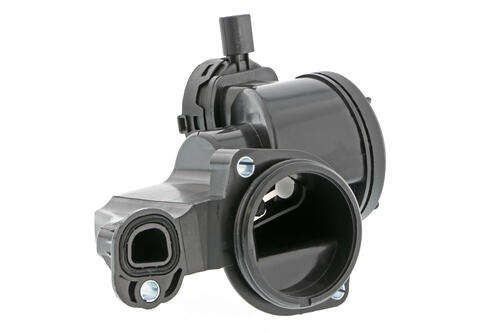

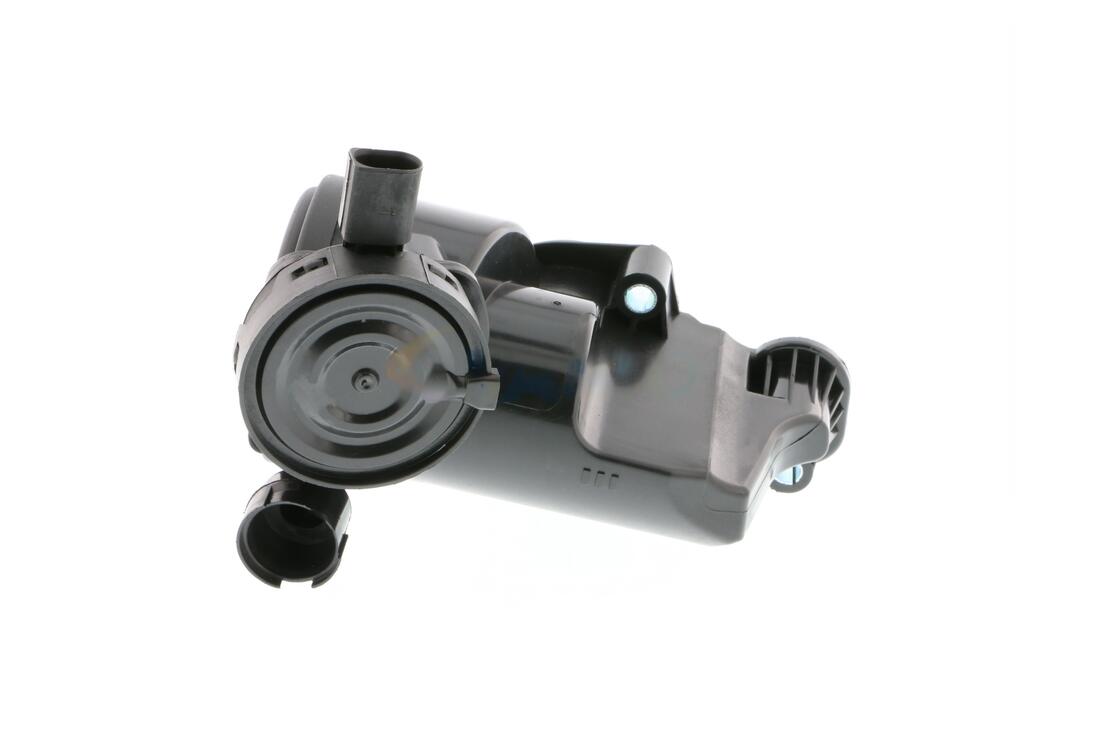

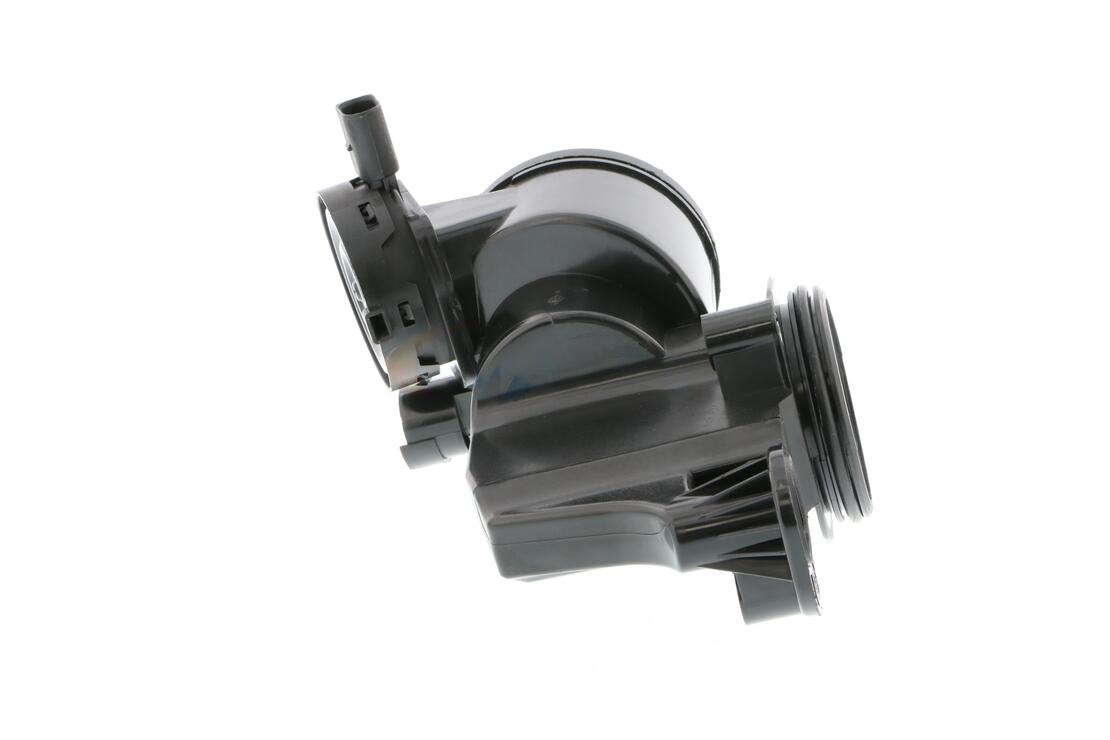

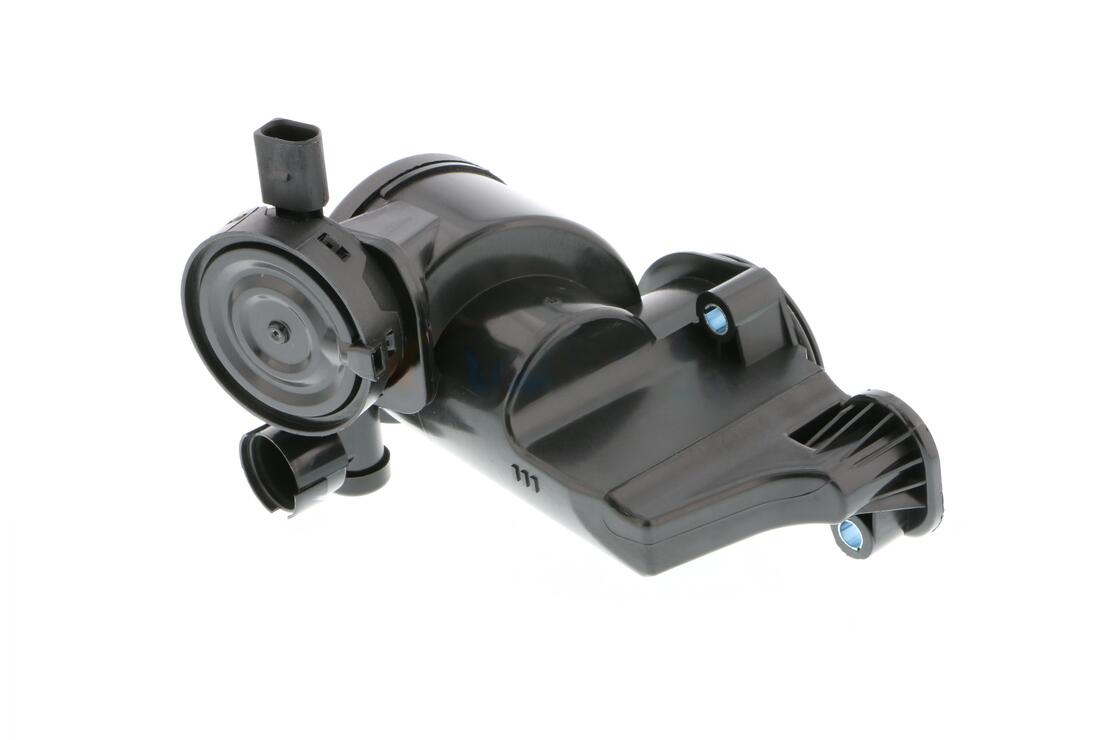

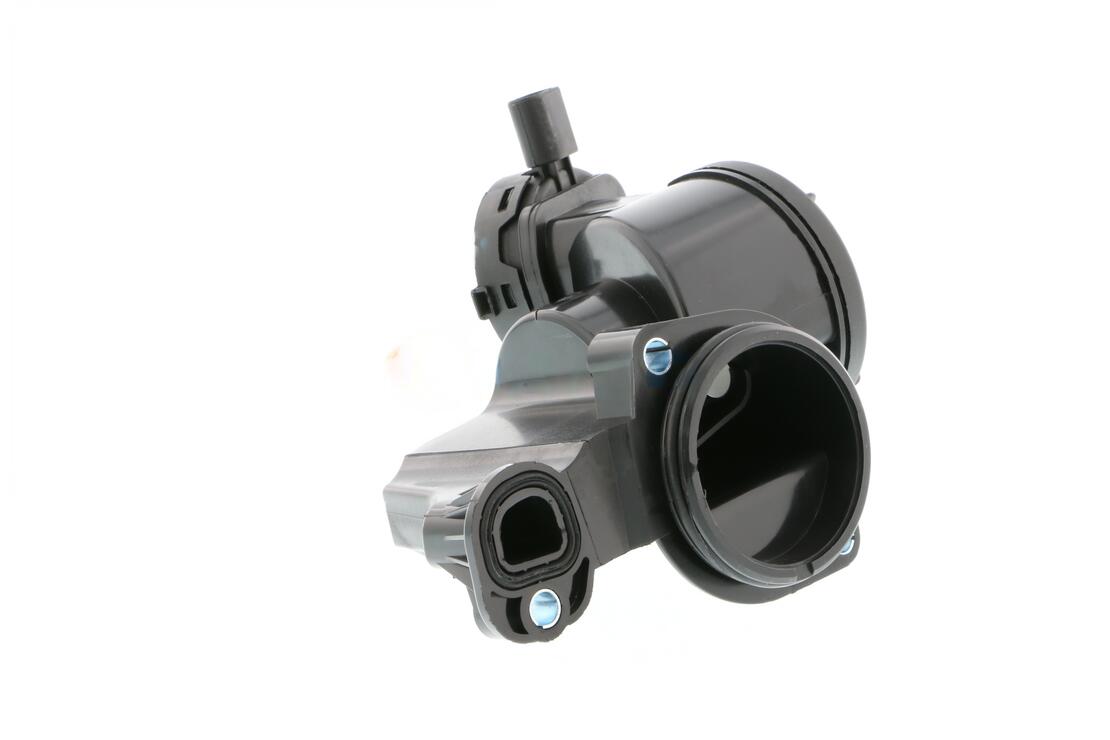

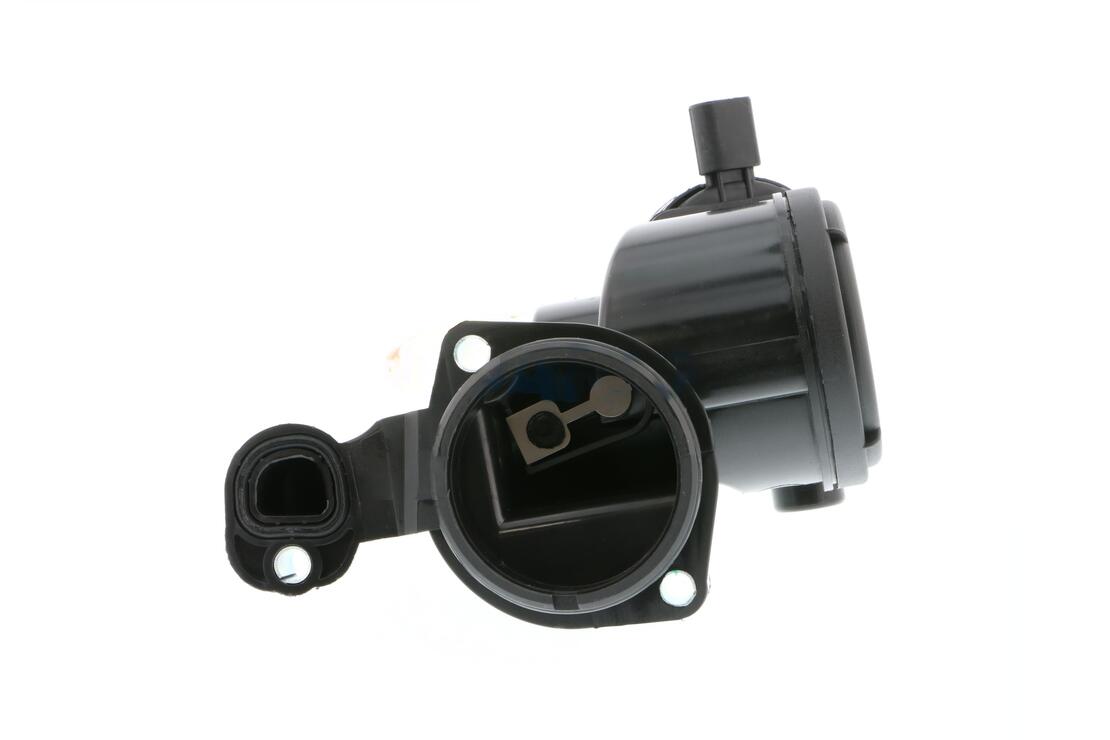

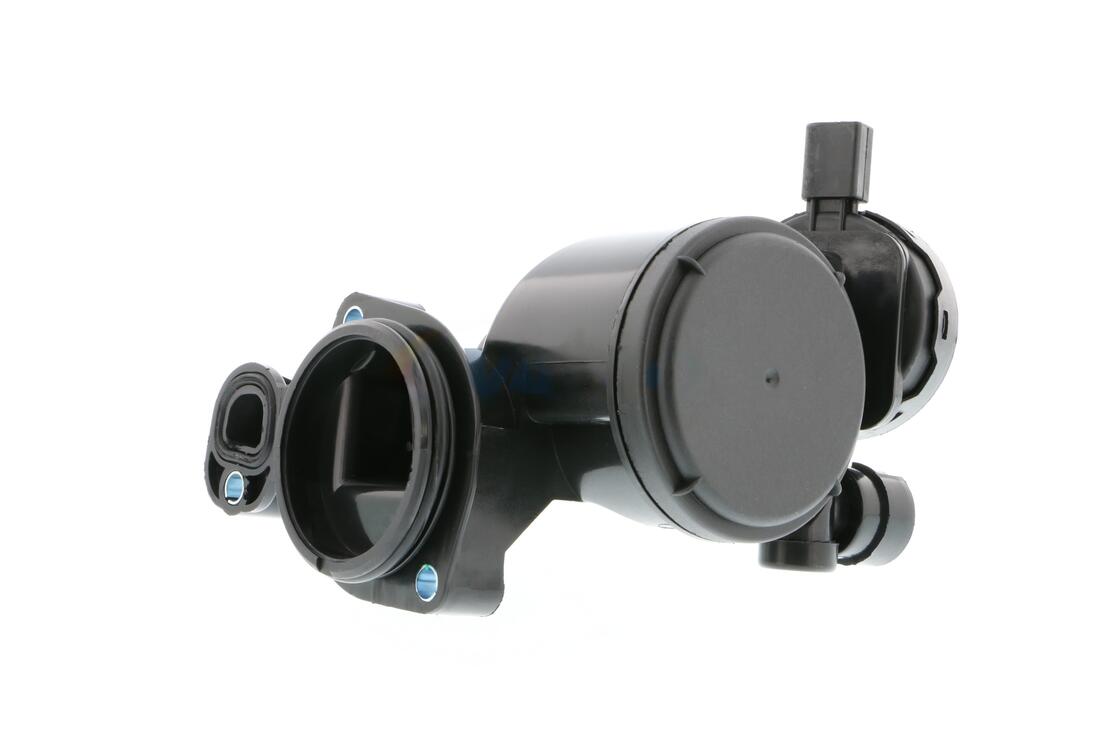

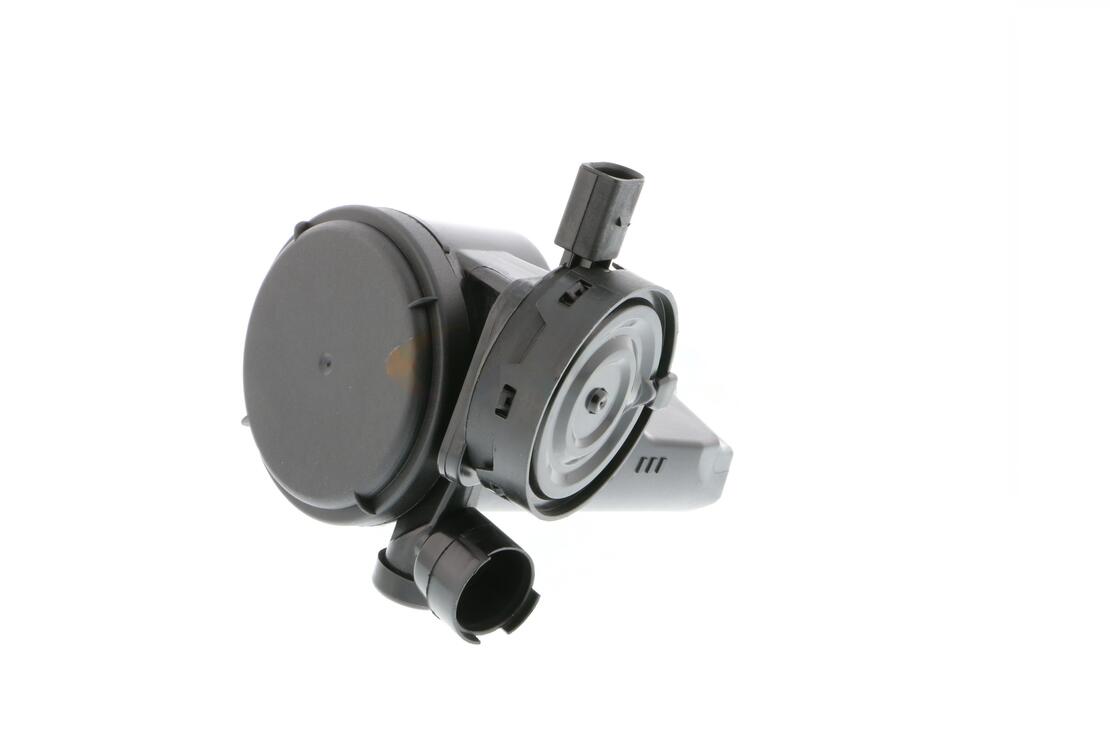

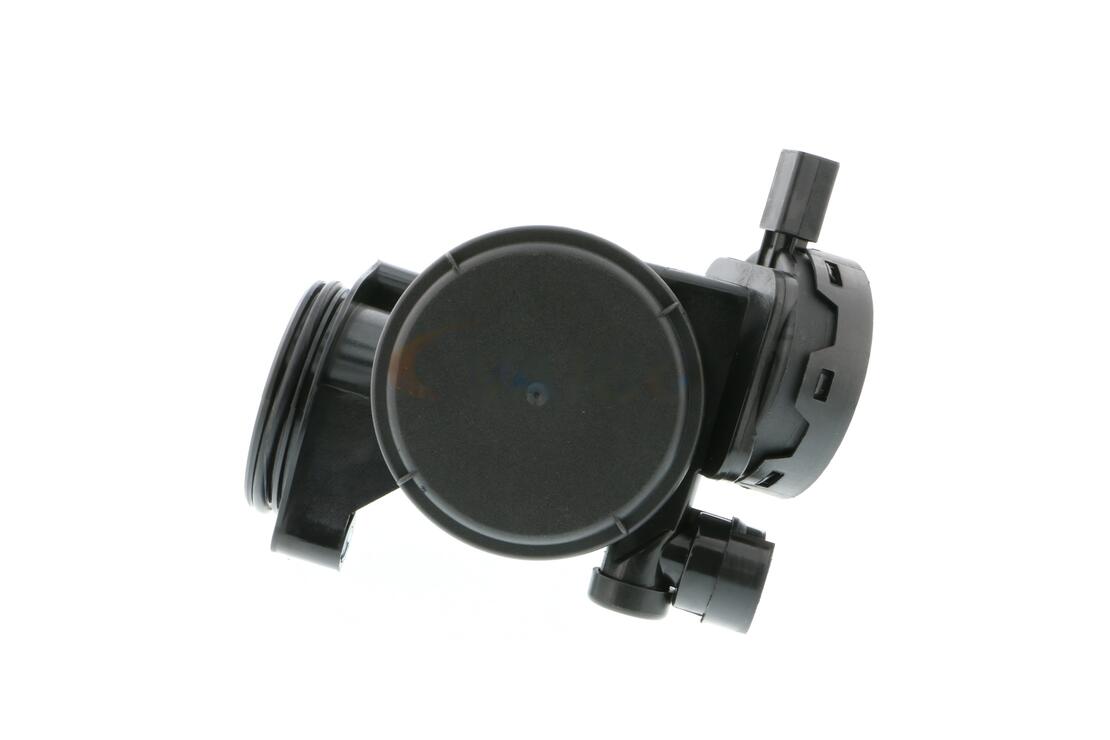

Oil Separator, crankcase ventilation
V10-2255
X-Ref
036 103 464 AH
Length
160 mm
Valve type
Breather Valve
Supplementary Article/Supplementary Info
with gaskets/seals
Recommended change interval
60000 km
Observe service information
Yes
Housing material
Polyamid 6.6
Fitting Position
engine sided
Width
126 mm
Height
132 mm
Observe technical data
Yes
Observe the vehicle manufacturer specifications
Yes
Operating Mode
electronically controlled
Supplementary Article/Info 2
with plug
Recommended change interval
3 years
Seal Material
FPM (fluoride rubber)/ACM (polyacrylate rubber)
Article Description
Original VAICO Quality
EAN
4046001549595
High-efficiency separation geometries minimize oil content in blow-by gases to prevent carbon deposits in the intake tract
Integrated pressure control valves ensure constant crankcase internal pressure to protect engine seals
High-temperature resistant plastics ensure structural integrity and functional reliability under extreme thermal cycling
Precisely tuned return valves enable reliable recirculation of separated oil into the oil circuit
Custom-fit connection ports guarantee leak-free integration into the ventilation system and prevent unmetered air intake
| Manufacturer | Model | Type | Year of manufacture from |
|---|---|---|---|
| SKODA | OCTAVIA II Combi (1Z5) | 1.4 | 05.2004 - 05.2006 |
| VW | GOLF IV (1J1) | 1.4 16V | 10.1997 - 05.2004 |
| VW | LUPO I (6X1, 6E1) | 1.4 16V | 09.1998 - 07.2005 |
| VW | BORA I (1J2) | 1.4 16V | 03.2000 - 05.2005 |
| VW | GOLF IV Variant (1J5) | 1.4 16V | 05.1999 - 06.2006 |
| AUDI | A2 (8Z0) | 1.4 | 02.2000 - 08.2005 |
| SEAT | LEON (1M1) | 1.4 16V | 11.1999 - 06.2006 |
| SEAT | TOLEDO II (1M2) | 1.4 16V | 01.2000 - 05.2002 |
| SKODA | FABIA I (6Y2) | 1.4 16V | 12.1999 - 03.2008 |
| SKODA | OCTAVIA I (1U2) | 1.4 16V | 09.2000 - 12.2010 |
| SKODA | FABIA I Combi (6Y5) | 1.4 16V | 05.2000 - 12.2007 |
| SKODA | OCTAVIA I Combi (1U5) | 1.4 16V | 08.2000 - 12.2010 |
| SKODA | FABIA I Stufenheck (6Y3) | 1.4 16V | 10.1999 - 12.2007 |
| VW | POLO (9N_, 9A_) | 1.4 16V | 10.2001 - 05.2008 |
| VW | NEW BEETLE (9C1, 1C1) | 1.4 | 11.2001 - 09.2010 |
| SEAT | IBIZA III (6L1) | 1.4 16V | 02.2002 - 12.2007 |
| SEAT | CORDOBA (6L2) | 1.4 16V | 09.2002 - 12.2007 |
| VW | NEW BEETLE Cabriolet (1Y7) | 1.4 | 01.2003 - 09.2010 |
| VW | GOLF V (1K1) | 1.4 16V | 10.2003 - 05.2006 |
| VW | POLO | IV Stufenheck (9A4, 9A2, 9N2, 9A6) 1.4 | 11.2002 - 04.2012 |
| VW | CADDY III Großraumlimousine (2KB, 2KJ, 2CB, 2CJ) | 1.4 | 03.2004 - 05.2006 |
| VW | CADDY III Kasten/Großraumlimousine (2KA, 2KH, 2CA, 2CH) | 1.4 | 03.2004 - 05.2006 |
| VW | BORA Variant (1J6) | 1.4 16V | 09.2001 - 05.2005 |
| SKODA | OCTAVIA II (1Z3) | 1.4 | 05.2004 - 05.2006 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 16V | 01.2005 - 11.2006 |
| VW | FOX | Schrägheck (5Z1, 5Z3, 5Z4) 1.4 | 04.2005 - 12.2009 |
| SKODA | ROOMSTER (5J7) | 1.4 | 09.2006 - 05.2015 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 16V | 05.2006 - 12.2013 |
| VW | GOLF V (1K1) | 1.4 16V | 05.2006 - 11.2008 |
| VW | CADDY III Großraumlimousine (2KB, 2KJ, 2CB, 2CJ) | 1.4 | 05.2006 - 08.2010 |
| VW | CADDY III Kasten/Großraumlimousine (2KA, 2KH, 2CA, 2CH) | 1.4 | 05.2006 - 08.2010 |
| VW | POLO (9N_, 9A_) | 1.4 16V | 05.2006 - 11.2009 |
| SKODA | OCTAVIA II (1Z3) | 1.4 | 06.2004 - 04.2013 |
| SKODA | FABIA I Stufenheck (6Y3) | 1.4 16V | 04.2006 - 12.2007 |
| SKODA | FABIA I Combi (6Y5) | 1.4 16V | 04.2006 - 12.2007 |
| SEAT | CORDOBA (6L2) | 1.4 16V | 05.2006 - 11.2009 |
| SKODA | FABIA II (542) | 1.4 | 01.2007 - 12.2014 |
| SEAT | IBIZA III (6L1) | 1.4 16V | 05.2006 - 11.2009 |
| SKODA | FABIA II Combi (545) | 1.4 | 10.2007 - 12.2014 |
| SKODA | ROOMSTER Praktik (5J) | 1.4 | 03.2007 - 05.2015 |
| VW | GOLF V Variant (1K5) | 1.4 | 06.2007 - 07.2009 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.4 | 05.2006 - 06.2013 |
| SEAT | ALTEA (5P1) | 1.4 16V | 05.2006 - 05.2011 |
| SEAT | LEON (1P1) | 1.4 16V | 06.2006 - 12.2012 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.4 16V | 10.2006 - 06.2013 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 | 07.2008 - 05.2015 |
| VW | GOLF VI (5K1) | 1.4 | 10.2008 - 11.2012 |
| SKODA | FABIA I (6Y2) | 1.4 | 02.2006 - 10.2006 |
| VW | GOLF VI Variant (AJ5) | 1.4 | 07.2009 - 07.2013 |
| SEAT | TOLEDO III (5P2) | 1.4 16V | 05.2006 - 05.2009 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 LPG | 07.2008 - 05.2011 |
| SKODA | ROOMSTER (5J7) | 1.4 LPG | 03.2010 - 05.2015 |
| SKODA | FABIA II (542) | 1.4 LPG | 01.2007 - 11.2014 |
| SKODA | FABIA II Combi (545) | 1.4 LPG | 10.2007 - 11.2014 |
| VW | GOLF VAN IV Variant (1J5) | 1.4 | 05.2000 - 06.2006 |
| VW | POLO (9N_, 9A_) | 1.4 BiFuel | 05.2006 - 11.2009 |
| Manufacturer | Comparison number |
|---|---|
| AUDI, SEAT, SKODA, VW, VAG | 036 103 464 Q |
| AUDI, SEAT, SKODA, VW, VAG | 036 103 464 AD |
| AUDI, SEAT, SKODA, VW | 361 034 64A H |
| AUDI, SEAT, SKODA, VW, VAG | 036 103 464 AH |
| AUDI, SEAT, SKODA, VW, VAG | 036 103 464 AB |
| SEAT, SKODA | 361 034 64A B |
| SEAT, SKODA | 361 034 64A D |
| SEAT, SKODA | 36103464Q |
| VW | 036103677 |
| VW | 36103464AB |
| VAG | 36 103 464 AD |
| VAG | 36 103 464 AB |
| VAG | 36 103 464 AH |
| VAG | 36 103 464 Q |
| VAG | N 906 175 01 |
