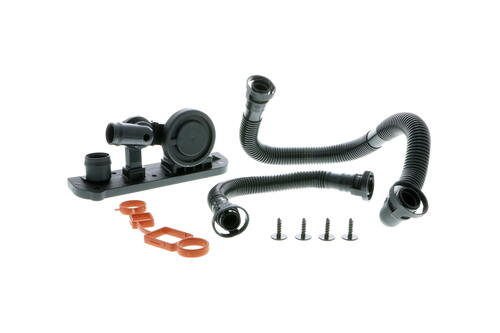

Repair Set, crankcase breather

V10-3246

X-Ref06F 129 101 N kit*
i. a. fitting forA3, A4, A6, Golf V, Passat, Leon, Altea
Fitting PositionCylinder Head
Operating ModePressure Controlled
Bolt Head-/Nut DesignFemale Torx
Valve typeBreather Valve, Diaphragm Valve
Infowith hose, with seal, with screws
Bolt / Nut VersionSheet Metal Screw
Full SetYes
Weight0.6108 kg
Packaging height28.3 cm
Packaging width11.8 cm
Housing materialPolyamid 6.6
Observe service informationYes
Seal MaterialFPM (fluoride rubber)/ACM (polyacrylate rubber)
Recommended replace interval60000 km / 3 years
Engine TypePetrol
Product consists of:V10-0775, V10-9732, V10-2559, V10-2779, V10-3245
EAN4046001638626
Packaging unit1
Coming soon (CW: 37)Price per piece: 53.10 VAT incl.
