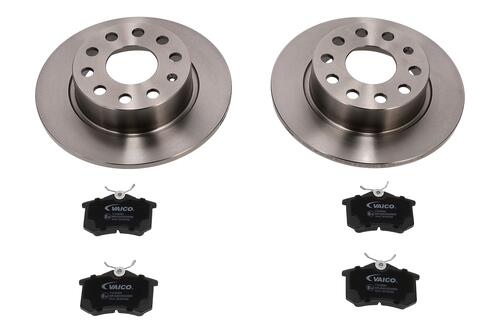

Brake Set, disc brakes


X-Ref1K0 615 601 AB kit*
i. a. fitting forA3, Altea, Eos, Golf V
Fitting PositionRear Axle
Brake Disc TypeSolid
Wear Warning Contactincl. wear warning contact
Bolt Hole Circle Ø112 mm
Number of Holes5
Bore Ø15.3 mm
Centering Diameter65 mm
Bore Ø 115.3 mm
Minimum Thickness8 mm
Bore Ø 26.6 mm
No. of holes 29
Brake Disc Thickness10 mm
Rim Hole Number5
Weight8.921 kg
Height51.6 mm
Diameter253 mm
Inner Diameter140 mm
Packaging height11 cm
Packaging width26 cm
Engine TypePetrol, Diesel
Product consists of:V10-40077, V10-8178-1
Packaging unit1
Available Price per piece: 37.78 VAT incl.
