VAICO

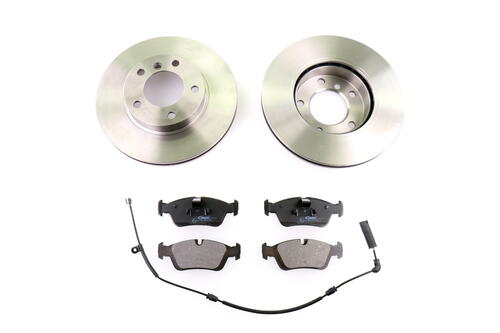

Brake Kit, disc brake
V20-90001
X-Ref
34 11 6 864 060 kit
Fitting Position
Front Axle
Brake Disc Thickness
22 mm
Brake Disc Type
Vented
Outer diameter
286 mm
Height
51,5 mm
Centering Diameter
79 mm
Rim Hole Number
5
Bolt Hole Circle Ø
120 mm
Supplementary Article/Info 2
with brake pads
Wear Warning Contact
incl. wear warning contact
Inner diameter
148, 147,5 mm
Bore Ø
14,5 mm
Minimum thickness
20,4 mm
Bore Ø 1
14,65 mm
Bore Ø 2
12,7 mm
Number of Holes
5
Article Description
EXPERT KITS +
EAN
4046001790393
VAICO - EXPERTS FOR BRAKE TECHNOLOGY
Brake safely. VAICO offers you a wide range of high-quality brake discs and pads in OEM quality.
Optimally matched friction pairing between brake disc and pad ensures constant friction coefficients and minimizes the risk of fading
High-carbon cast alloys of the brake discs offer excellent thermal conductivity and high dimensional stability against thermal distortion
Fulfillment of the vehicle manufacturer's requirements
The VAICO brake discs and pads are subjected to intensive stress and tested on various routes with different braking conditions.
A complete repair solution in our EXPERTKIT+ – All in one box solution!
In order to guarantee the braking power of a disc brake, brake discs and brake pads must pass our strict regulations and quality management.
| Manufacturer | Model | Type | Year of manufacture from |
|---|---|---|---|
| BMW | 3 (E36) | 318 is | 09.1993 - 12.1995 |
| BMW | 3 Coupe (E36) | 318 is | 01.1992 - 12.1995 |
| BMW | 3 (E36) | 320 i | 01.1991 - 02.1998 |
| BMW | 3 Coupe (E36) | 320 i | 12.1991 - 11.1998 |
| BMW | 3 (E36) | 325 i | 09.1990 - 12.1995 |
| BMW | 3 Coupe (E36) | 325 i | 10.1991 - 02.1995 |
| BMW | 3 (E36) | 325 td | 09.1991 - 02.1998 |
| BMW | 3 (E36) | 325 tds | 05.1993 - 02.1998 |
| BMW | 3 Cabriolet (E36) | 320 i | 12.1993 - 11.1999 |
| BMW | 3 Cabriolet (E36) | 325 i | 03.1993 - 08.1995 |
| BMW | 3 (E36) | 318 tds | 01.1995 - 02.1998 |
| BMW | 3 Touring (E36) | 320 i | 01.1995 - 04.1999 |
| BMW | 3 Touring (E36) | 328 i | 02.1995 - 04.1999 |
| BMW | 3 Touring (E36) | 325 tds | 03.1995 - 04.1999 |
| BMW | 3 (E36) | 328 i | 01.1995 - 04.1998 |
| BMW | 3 (E36) | 323 i | 05.1995 - 11.1998 |
| BMW | 3 Coupe (E36) | 328 i | 01.1995 - 04.1999 |
| BMW | 3 Cabriolet (E36) | 328 i | 01.1995 - 11.1999 |
| BMW | 3 Cabriolet (E36) | 323 i | 05.1995 - 11.1999 |
| BMW | 3 Coupe (E36) | 318 is | 09.1995 - 04.1999 |
| BMW | 3 Coupe (E36) | 323 i | 05.1995 - 04.1999 |
| BMW | 3 Touring (E36) | 323 i | 12.1995 - 04.1999 |
| BMW | 3 Touring (E36) | 318 i | 09.1995 - 04.1999 |
| BMW | 3 (E36) | 318 is | 01.1996 - 05.1998 |
| BMW | 3 Compact (E36) | 318 ti | 01.1996 - 08.1999 |
| BMW | Z3 Roadster (E36) | 2.8 i | 11.1996 - 05.2000 |
| BMW | 3 Compact (E36) | 323 ti | 09.1997 - 08.2000 |
| BMW | Z3 Coupe (E36) | 2.8 i | 01.1998 - 05.2000 |
| BMW | 3 (E46) | 318 i | 12.1997 - 09.2001 |
| BMW | 3 (E46) | 320 d | 04.1998 - 09.2001 |
| BMW | 3 (E46) | 323 i | 03.1998 - 09.2000 |
| BMW | 3 (E46) | 320 i | 03.1998 - 09.2000 |
| BMW | 3 Coupe (E46) | 323 Ci | 04.1999 - 09.2000 |
| BMW | 3 (E46) | 316 i | 12.1998 - 02.2002 |
| BMW | Z3 Roadster (E36) | 2.0 i | 04.1999 - 01.2003 |
| BMW | 3 Touring (E46) | 320 i | 10.1999 - 09.2000 |
| BMW | 3 Coupe (E46) | 320 Ci | 02.1999 - 08.2001 |
| BMW | 3 Coupe (E46) | 318 Ci | 12.1999 - 08.2001 |
| BMW | 3 Touring (E46) | 318 i | 10.1999 - 09.2001 |
| BMW | 3 Touring (E46) | 320 d | 03.2000 - 09.2001 |
| BMW | Z3 Roadster (E36) | 2.2 i | 10.2000 - 06.2002 |
| BMW | 3 Coupe (E46) | 320 Ci | 01.2000 - 05.2006 |
| BMW | 3 (E46) | 320 i | 09.2000 - 02.2005 |
| BMW | 3 (E46) | 316 i | 04.2000 - 02.2005 |
| BMW | 3 Coupe (E46) | 316 Ci | 04.2000 - 07.2006 |
| BMW | 3 Compact (E46) | 316 ti | 06.2001 - 02.2005 |
| BMW | 3 Compact (E46) | 318 ti | 03.2001 - 12.2004 |
| BMW | 3 (E46) | 318 i | 09.2001 - 02.2005 |
| BMW | 3 Coupe (E46) | 318 Ci | 09.2001 - 02.2004 |
| BMW | 3 (E46) | 318 d | 09.2001 - 03.2003 |
| BMW | 3 (E46) | 316 i | 02.2002 - 02.2005 |
| BMW | 3 Touring (E46) | 318 i | 09.2001 - 07.2005 |
| BMW | 3 Cabriolet (E46) | 318 Ci | 09.2001 - 12.2007 |
| BMW | 3 Touring (E46) | 316 i | 03.2002 - 02.2005 |
| BMW | 3 Touring (E46) | 318 d | 10.2002 - 03.2003 |
| BMW | Z4 Roadster (E85) | 2.5 i | 12.2002 - 12.2005 |
| BMW | 3 Compact (E46) | 318 td | 03.2003 - 02.2005 |
| BMW | Z4 Roadster (E85) | 2.2 i | 10.2003 - 10.2005 |
| BMW | 3 (E46) | 318 d | 03.2003 - 02.2005 |
| BMW | 3 Touring (E46) | 318 d | 03.2003 - 02.2005 |
| BMW | Z4 Roadster (E85) | 2.0 i | 03.2005 - 02.2009 |
| BMW | 3 (E46) | 316 i | 06.2002 - 02.2005 |
| BMW | 3 Coupe (E46) | 316 Ci | 06.2002 - 07.2006 |
| BMW | Z4 Roadster (E85) | 2.5 i | 09.2005 - 02.2009 |
| BMW | 3 Cabriolet (E46) | 318 Ci | 03.2004 - 08.2006 |
| BMW | 3 Coupe (E46) | 318 Ci | 03.2004 - 05.2006 |
| BMW | 3 Compact (E46) | 316 ti | 06.2002 - 02.2005 |
| BMW | 3 (E46) | 320 d | 02.1998 - 08.2001 |
| BMW | 3 Touring (E46) | 318 i | 10.1999 - 09.2001 |
| Manufacturer | Comparison number |
|---|---|
| BMW | 34 11 6 864 060 kit |
| BMW | 6 864 060 |
| BMW | 6 761 244 |
| BMW | 34 11 6 864 060 |
| BMW | 34 11 6 761 244 |
| BMW | 34 10 1 165 455 |
| BMW | 1 164 199 |
| BMW | 34 11 6 855 153 |
| BMW | 1 164 431 |
| BMW | 34 11 1 164 199 |
| BMW | 34 11 1 160 981 |
| BMW | 1 160 674 |
| BMW | 1 160 981 |
| BMW | 1 162 288 |
| BMW | 6 794 301 |
| BMW | 6 766 239 |
| BMW | 1 162 282 |
| BMW | 1 165 455 |
| BMW | 1 164 921 |
| BMW | 6 855 153 |
| BMW | 1160674 |
| BMW | 34 11 1 164 431 |
| BMW | 34 11 1 165 455 |
| BMW | 34 11 6 766 239 |
| BMW | 34 11 1 160 674 |
| BMW | 34 11 1 164 921 |
| BMW | 34 11 1 162 282 |
| BMW | 34 11 1 162 288 |
| BMW | 34 11 6 794 301 |
| BMW | 1 160 356 |
| BMW | 31 11 6 752 482 |
| BMW | 1 161 437 |
| BMW | 1 160 532 |
| BMW | 1 163 850 |
| BMW | 1 165 556 |
| BMW | 1 164 737 |
| BMW | 6 761 242 |
| BMW | 1 161 438 |
| BMW | 31 11 6 761 242 |
| BMW | 6 752 482 |
| BMW | 1 165 555 |
| BMW | 2 157 570 |
| BMW | 34 11 1 165 555 |
| BMW | 1 165 557 |
| BMW | 34 11 2 157 571 |
| BMW | 34 11 1 164 737 |
| BMW | 1 161 445 |
| BMW | 34 21 1 160 356 |
| BMW | 34 11 1 161 438 |
| BMW | 2 157 571 |
| BMW | 1 161 446 |
| BMW | 34 11 1 161 446 |
| BMW | 6 761 237 |
| BMW | 9 070 047 |
| BMW | 34116761244 |
| BMW | 34 11 2 157 570 |
| BMW | 31 11 6 756 128 |
| BMW | 34 11 1 160 357 |
| BMW | 6 756 128 |
| BMW | 34 11 9 068 842 |
| BMW | 1 160 357 |
| BMW | 34 11 1 165 556 |
| BMW | 34 11 1 165 557 |
| BMW | 34 11 6 761 237 |
| BMW | 34 11 9 070 047 |
| BMW | 34 11 1 160 356 |
| BMW | 34 11 1 163 850 |
| BMW | 34 11 1 161 445 |
| BMW | 34 11 1 161 437 |
| BMW | 34 11 1 160 532 |
| BMW | 34 11 6 761 242 |
| BMW | 34 11 6 756 128 |
| BMW | 34 11 6 752 731 |
| BMW | 34 11 6 752 482 |
| BMW | 34 11 1 164 500 |
| BMW | 34 11 1 164 498 |
| SUBARU | 3411761242 |
| SUBARU | 4106037P90 |
| VW | 34111160431 |
| KIA | 9068842 |
| MINI | 6794301 |
| MINI | 1162282 |
| MINI | 6766239 |
| MINI | 1164199 |
| MINI | 1164431 |
| MINI | 1164921 |
| MINI | 6864060 |
| MINI | 1162288 |
| MINI | 1160981 |
| MINI | 6855153 |
| MINI | 34116864060 |
| MINI | 1165455 |
| BMW (BRILLIANCE) | 4106037P91 |
