VAICO
Brake Kit, disc brake
V30-90002
X-Ref
A 203 421 03 12 kit
Fitting Position
Front Axle

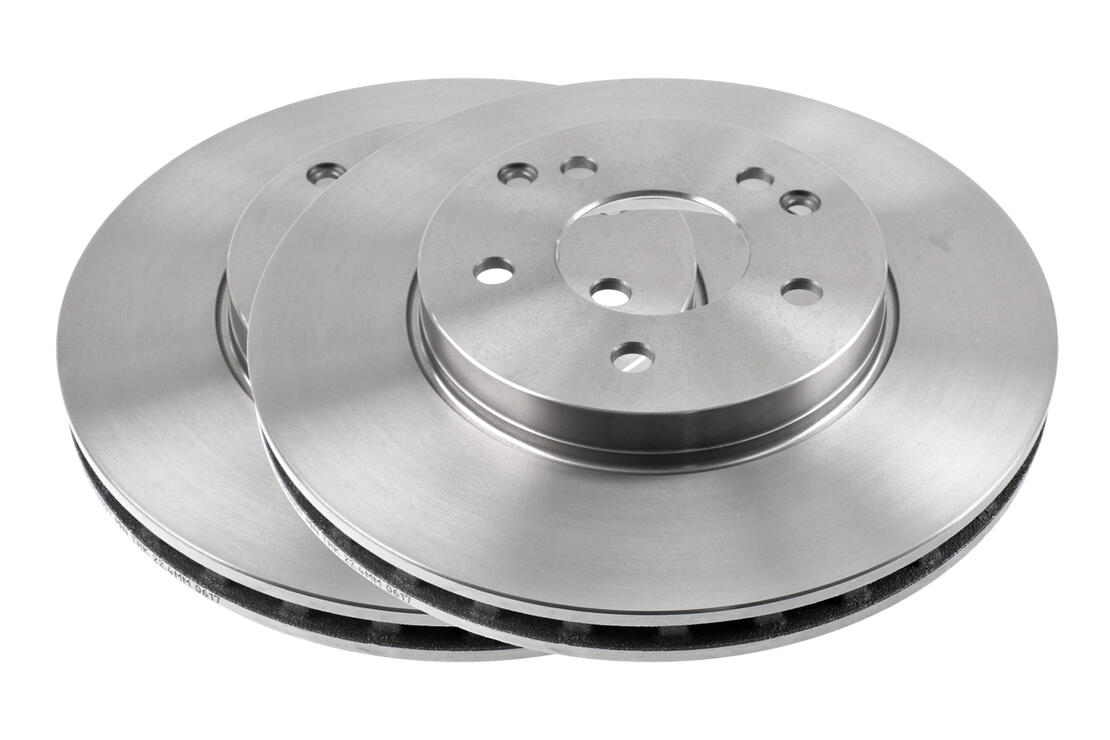

Brake Disc Type
Vented
Outer diameter
288 mm
Brake Disc Thickness
25 mm
Centering Diameter
67 mm
Bolt Hole Circle Ø
112 mm
Height
46,5 mm
Rim Hole Number
5
Wear Warning Contact

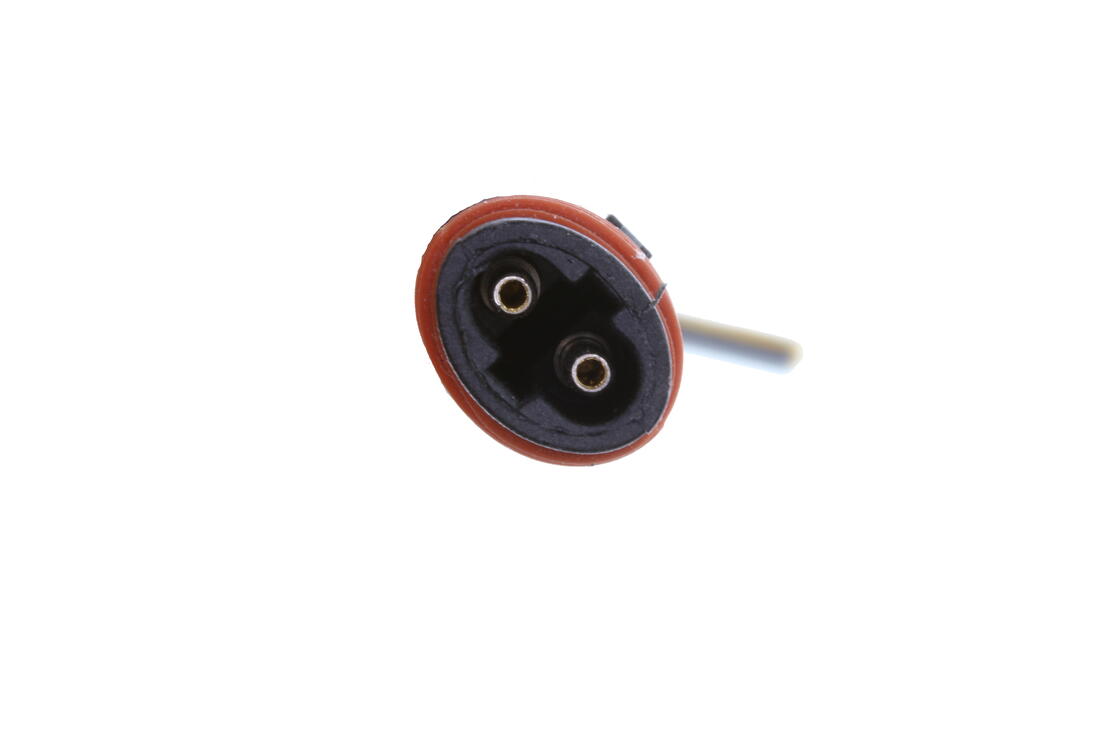

incl. wear warning contact
Supplementary Article/Info 2

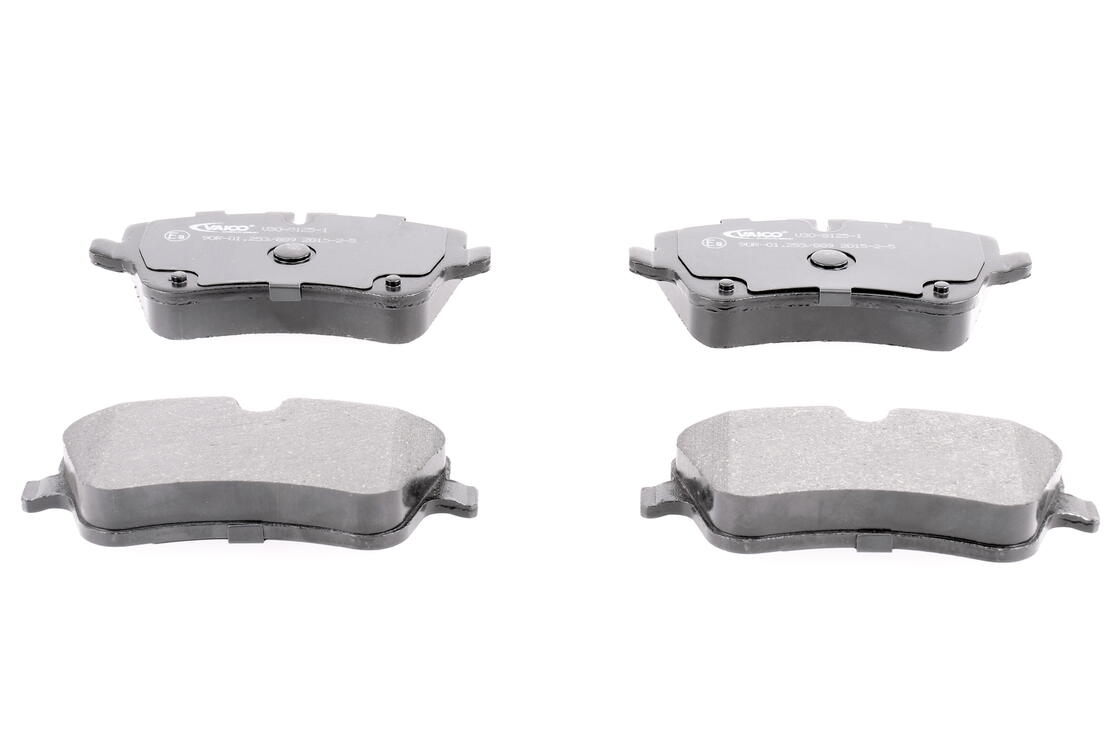

with brake pads
Inner diameter
154, 154,3 mm
Bore Ø
13,2 mm
Minimum thickness
22,4 mm
Article Description
EXPERT KITS +
EAN
4046001790454
VAICO - EXPERTS FOR BRAKE TECHNOLOGY
Precise fit for your brake system
Brake safely. VAICO offers you a wide range of high-quality brake discs and pads in OEM quality.
Strict quality standards
Fulfillment of the vehicle manufacturer's requirements
The VAICO brake discs and pads are subjected to intensive stress and tested on various routes with different braking conditions.
In order to guarantee the braking power of a disc brake, brake discs and brake pads must pass our strict regulations and quality management.
| Manufacturer | Model | Type | Year of manufacture from |
|---|---|---|---|
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 220 CDI (203.208) | 08.2006 - 08.2007 |
| MERCEDES-BENZ | C-CLASS (W203) | C 180 (203.035) | 10.2000 - 05.2002 |
| MERCEDES-BENZ | C-CLASS (W203) | C 200 Kompressor (203.045) | 05.2000 - 06.2002 |
| MERCEDES-BENZ | C-CLASS (W203) | C 200 CDI (203.004) | 09.2000 - 06.2003 |
| MERCEDES-BENZ | C-CLASS (W203) | C 220 CDI (203.006) | 05.2000 - 02.2007 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 180 (203.735) | 03.2001 - 05.2002 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 200 Kompressor (203.745) | 03.2001 - 05.2002 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 220 CDI (203.706) | 03.2001 - 01.2004 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 200 Kompressor (203.245) | 03.2001 - 05.2002 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 200 CDI (203.204) | 03.2001 - 08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 220 CDI (203.206) | 03.2001 - 08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 180 (203.235) | 03.2001 - 05.2002 |
| MERCEDES-BENZ | C-CLASS (W203) | C 200 CDI (203.004) | 02.2001 - 06.2003 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 200 CDI (203.204, 203.207) | 03.2001 - 08.2007 |
| MERCEDES-BENZ | CLK (C209) | 200 Kompressor (209.342) | 09.2002 - 05.2009 |
| MERCEDES-BENZ | C-CLASS (W203) | C 180 Kompressor (203.046) | 05.2002 - 02.2007 |
| MERCEDES-BENZ | C-CLASS (W203) | C 200 Kompressor (203.042) | 05.2002 - 02.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 180 Kompressor (203.246) | 05.2002 - 08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 200 Kompressor (203.242) | 05.2002 - 08.2007 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 180 Kompressor (203.746) | 05.2002 - 05.2008 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 200 Kompressor (203.742) | 05.2002 - 05.2008 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 200 CGI Kompressor (203.743) | 03.2003 - 05.2008 |
| MERCEDES-BENZ | C-CLASS (W203) | C 200 CDI (203.007) | 04.2003 - 02.2007 |
| MERCEDES-BENZ | C-CLASS (W203) | C 200 CGI Kompressor (203.043) | 07.2003 - 02.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 200 CGI Kompressor (203.243) | 07.2003 - 08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 200 CDI (203.207) | 04.2003 - 08.2007 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 200 CDI (203.707) | 03.2003 - 05.2008 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C | 220 CDI (203.208) | 02.2004 - 08.2007 |
| MERCEDES-BENZ | C-CLASS (W203) | C 220 CDI (203.008) | 04.2003 - 02.2007 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 220 CDI (203.708) | 02.2004 - 05.2008 |
| MERCEDES-BENZ | SLK (R171) | 200 Kompressor (171.442) | 03.2004 - 02.2011 |
| MERCEDES-BENZ | CLK (C209) | 220 CDI (209.308) | 01.2005 - 05.2009 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 160 Kompressor (203.730) | 05.2002 - 05.2008 |
| MERCEDES-BENZ | C-CLASS (W203) | C 230 (203.052) | 01.2005 - 02.2007 |
| MERCEDES-BENZ | CLC-CLASS (CL203) CLC | 180 Kompressor (203.746) | 05.2008 - 06.2011 |
| MERCEDES-BENZ | CLC-CLASS (CL203) CLC | 200 CDI (203.707) | 05.2008 - 06.2011 |
| MERCEDES-BENZ | CLC-CLASS (CL203) CLC | 220 CDI (203.708) | 05.2008 - 06.2011 |
| MERCEDES-BENZ | CLC-CLASS (CL203) CLC | 160 (203.731) | 02.2009 - 06.2011 |
| MERCEDES-BENZ | C-CLASS (W203) | C 220 CDI (203.006) | 05.2000 - 02.2007 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C | 220 CDI | 03.2001 - 01.2004 |
| MERCEDES-BENZ | CLK (C209) | 220 CDI (209.308) | 01.2005 - 05.2009 |
| Manufacturer | Comparison number |
|---|---|
| MERCEDES-BENZ | 203 421 03 12 kit |
| MERCEDES-BENZ | A 203 421 03 12 |
| MERCEDES-BENZ | A 005 420 62 20 |
| MERCEDES-BENZ | A 203 421 03 12 kit |
| MERCEDES-BENZ | 005 420 62 20 |
| MERCEDES-BENZ | 005420622041 |
| MERCEDES-BENZ | 203 421 03 12 |
| MERCEDES-BENZ | 005420622010 |
| MERCEDES-BENZ | 005420622090 |
| MERCEDES-BENZ | 203421031290 |
| MERCEDES-BENZ | A 005420622010 |
| MERCEDES-BENZ | A 005420622090 |
| MERCEDES-BENZ | A 203421031290 |
| MERCEDES-BENZ | A 005 420 6 20 |
| MERCEDES-BENZ | 006420622090 |
| MERCEDES-BENZ | 0064206220 |
| MERCEDES-BENZ | A 003 420 95 20 |
| MERCEDES-BENZ | A003 420 45 20 |
| MERCEDES-BENZ | 005 420 6 20 |
| MERCEDES-BENZ | A006 420 62 20 |
| MERCEDES-BENZ | A005 420 6 20 |
| MERCEDES-BENZ | 0034204520 |
| MERCEDES-BENZ | 006420622041 |
| MERCEDES-BENZ | A 003 420 59 20 |
| MERCEDES-BENZ | A 003 420 60 20 |
| MERCEDES-BENZ | A 003 420 25 20 |
| MERCEDES-BENZ | A 003 420 26 20 |
| DACIA | A203421031290 |
