VAICO

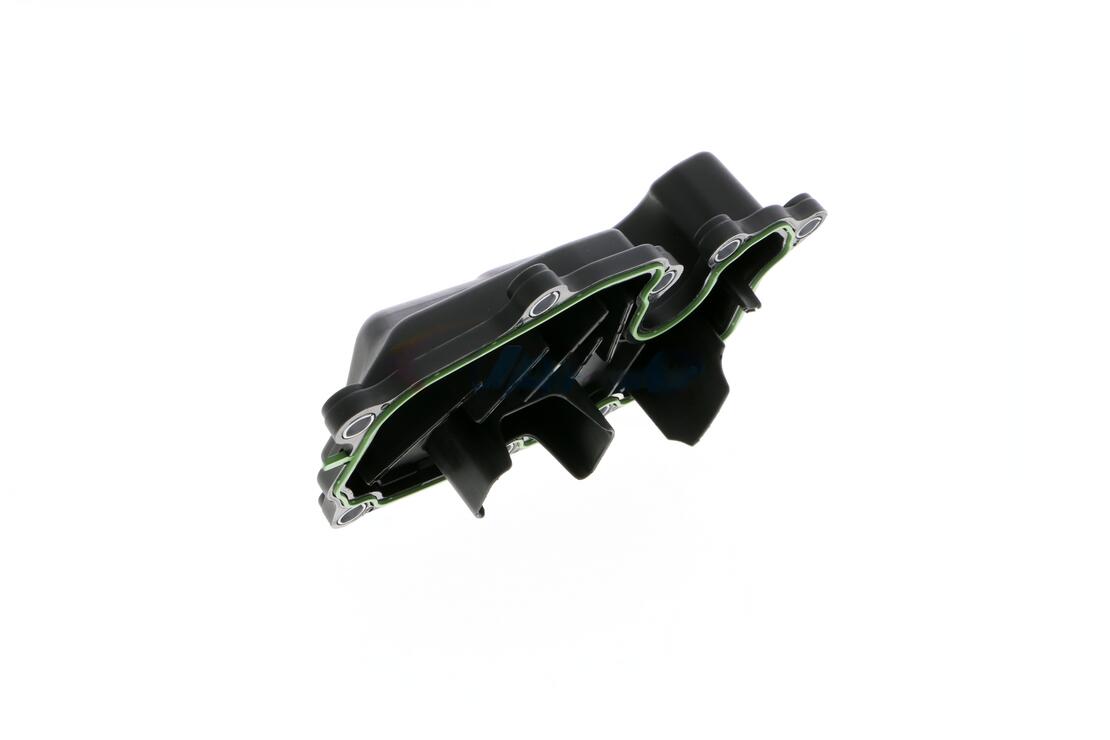

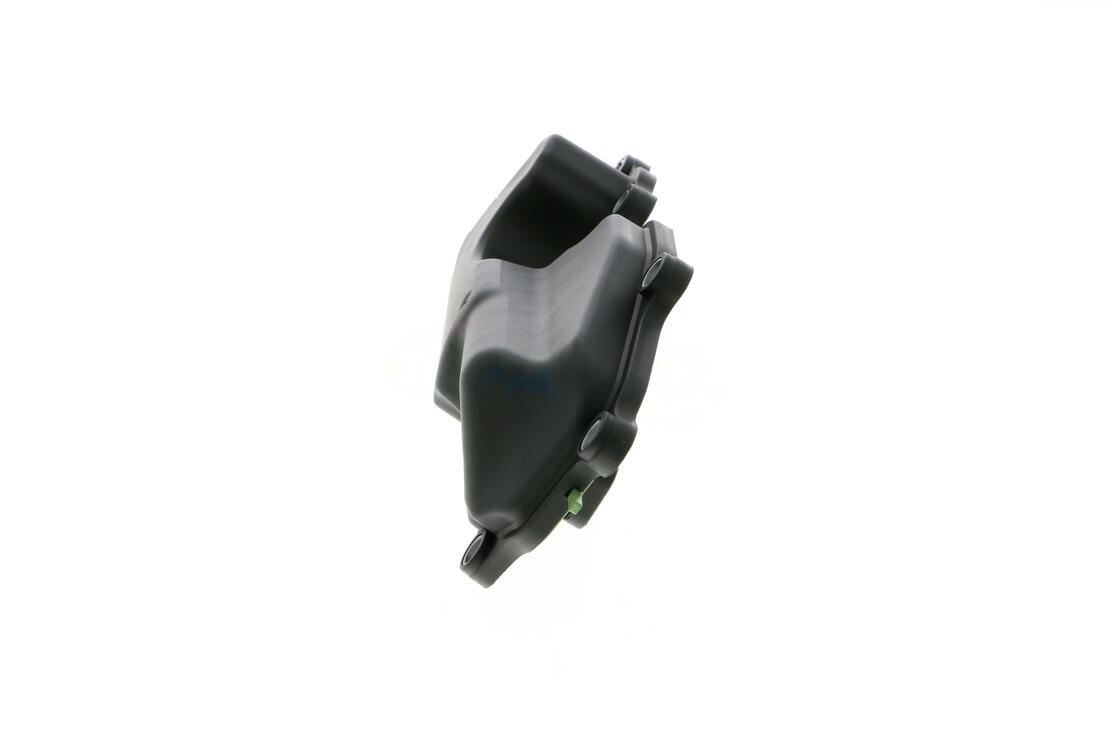

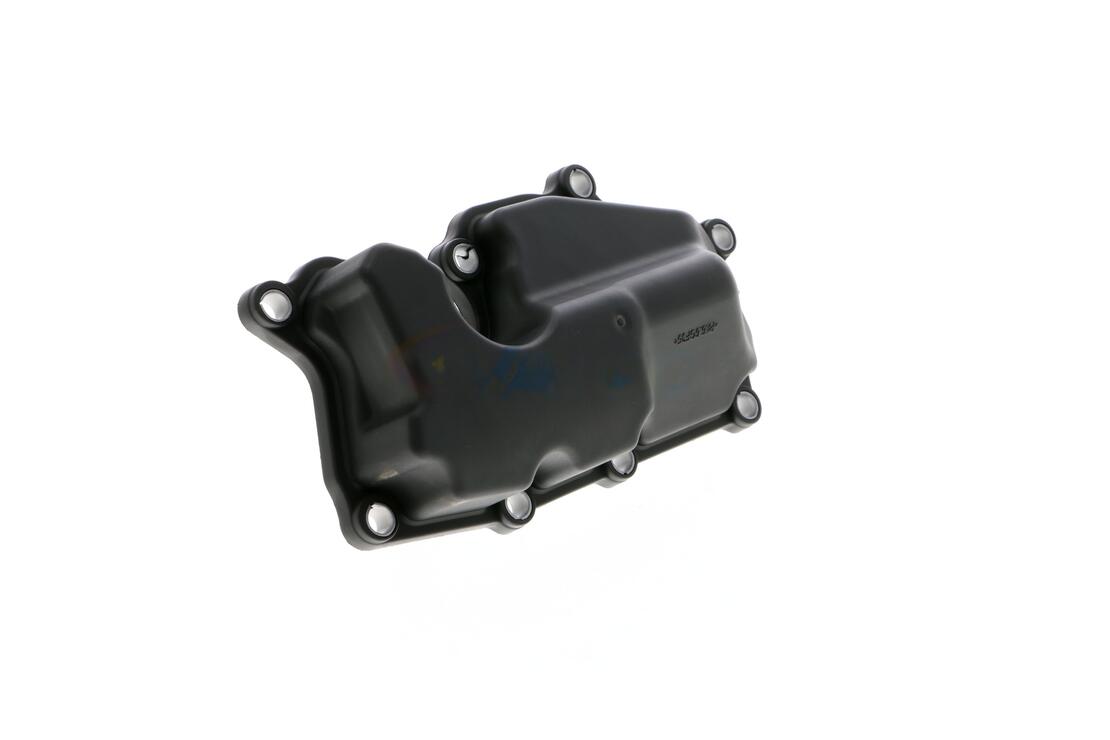

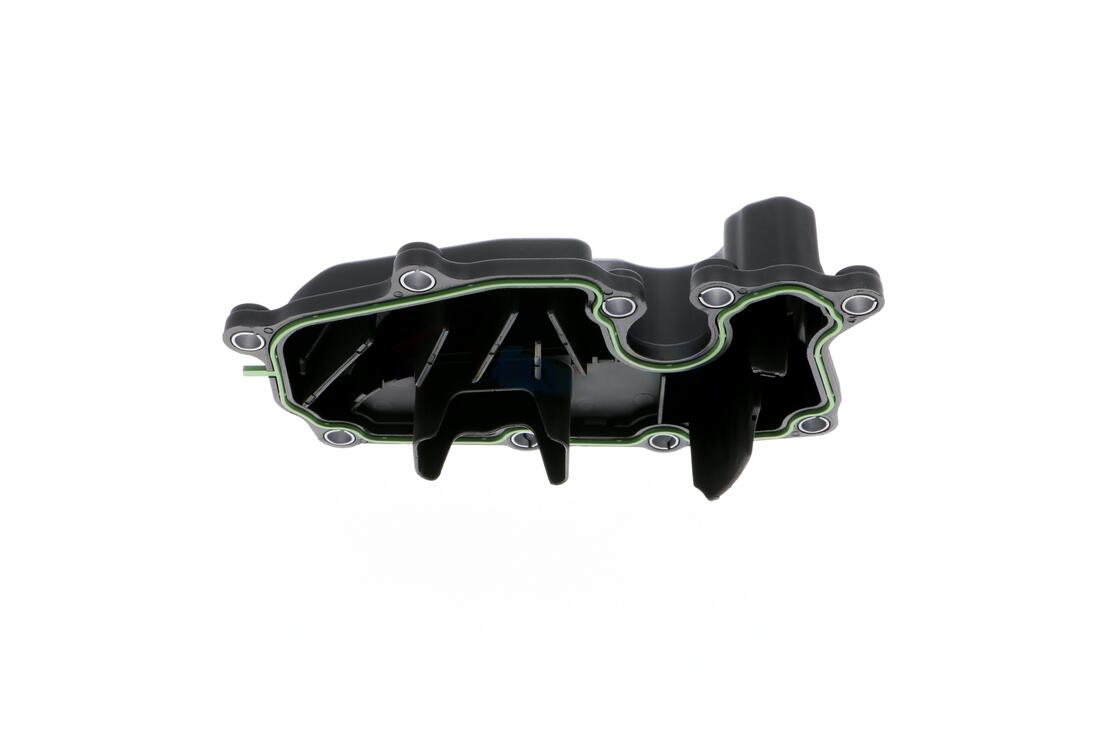

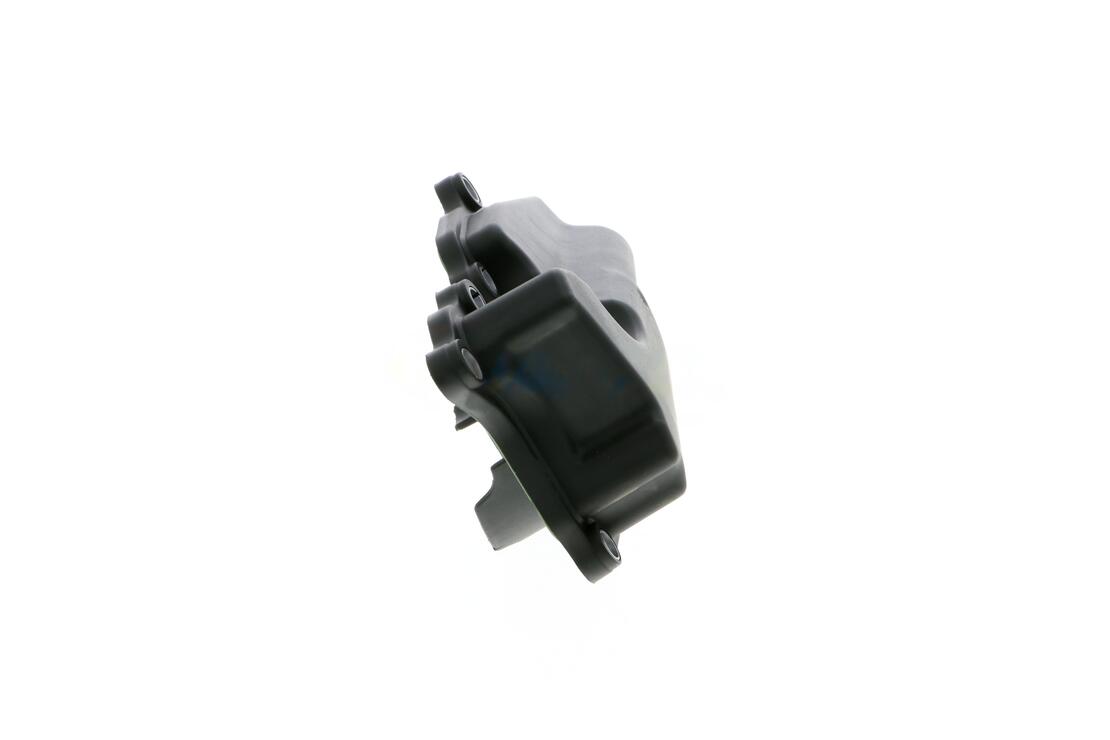

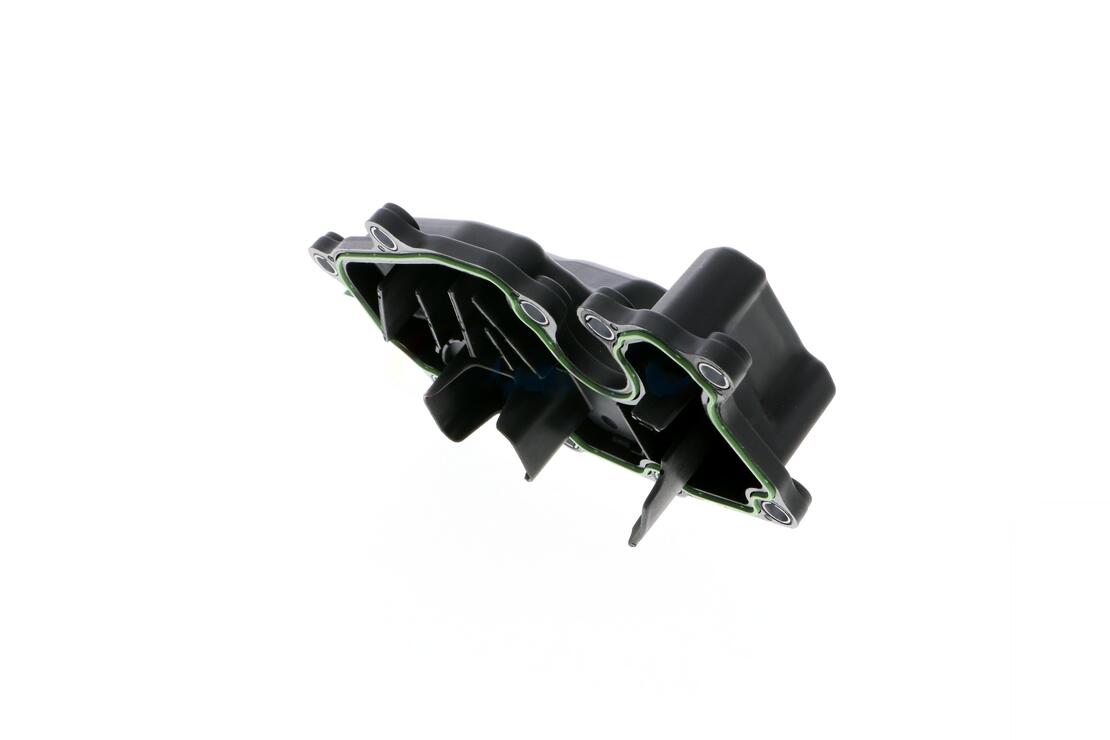

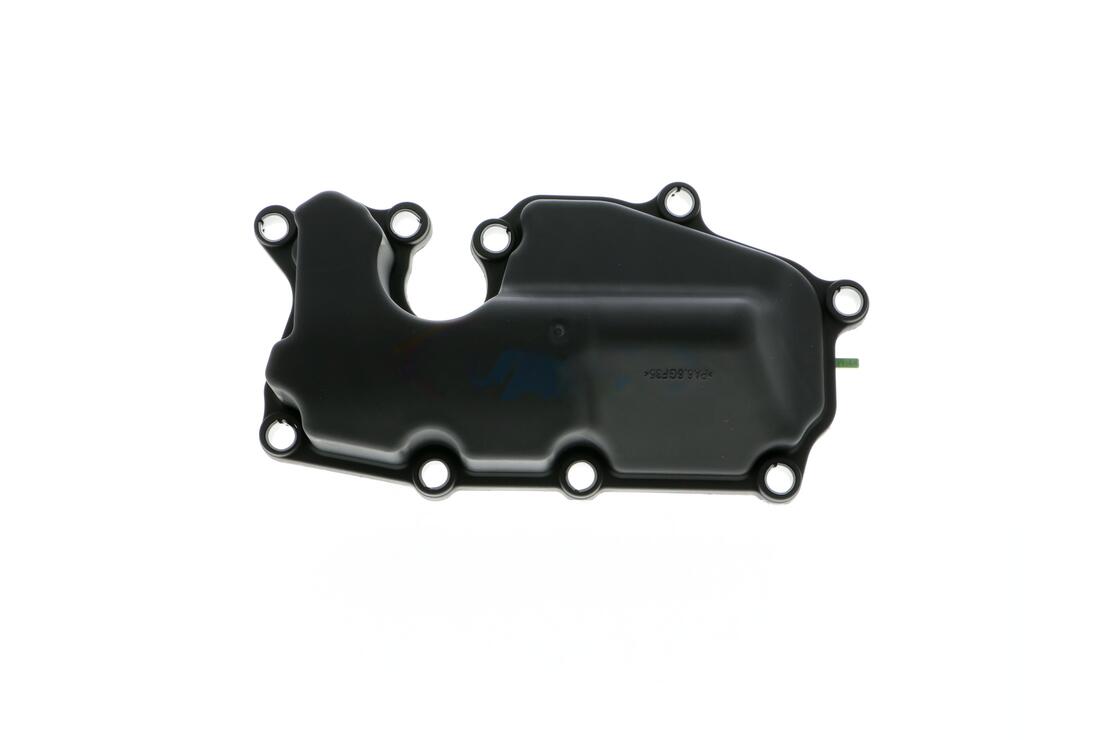

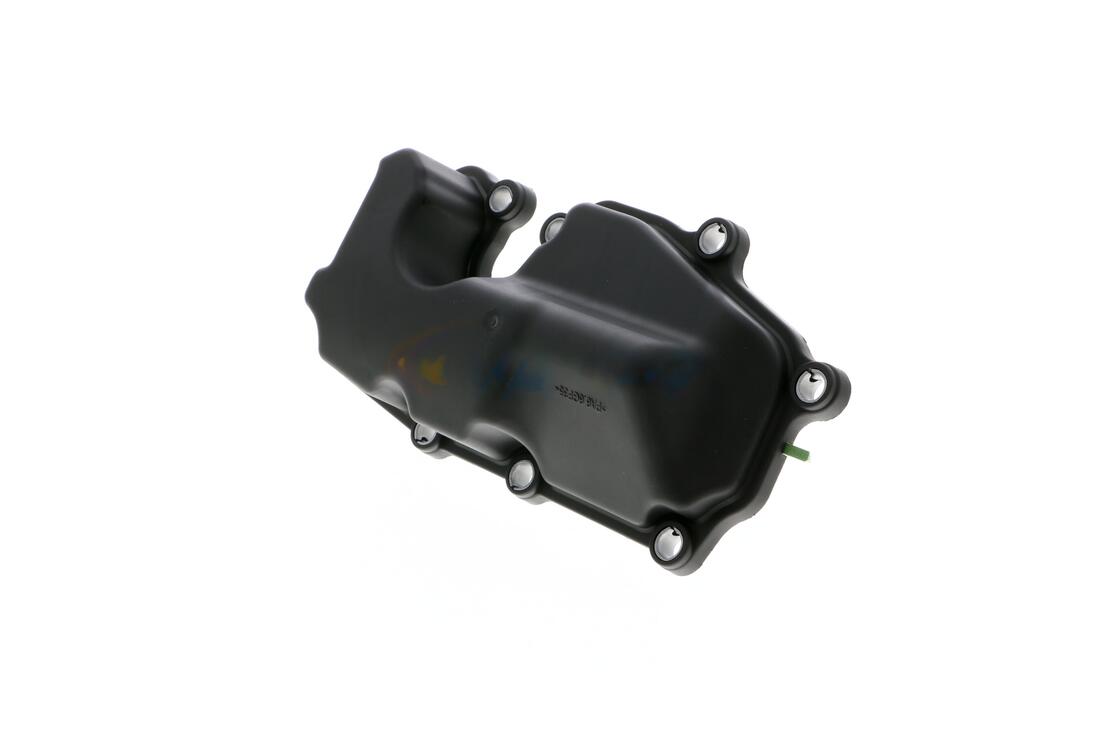

Oil Separator, crankcase ventilation
V10-4744
X-Ref
06H 103 464 L
Fitting Position
Cylinder Head
Operating Mode
Pressure Controlled
Supplementary Article/Supplementary Info
with gasket/seal
Housing material
Polyamid 6.6
Recommended change interval
60000 km
Recommended change interval
3 years
Seal Material
FPM (fluoride rubber)
Valve type
Breather Valve, Diaphragm Valve
Observe service information
Yes
Article Description
EXPERT KITS +
EAN
4046001835315
| Manufacturer | Model | Type | Year of manufacture from |
|---|---|---|---|
| VW | PASSAT B7 (362) | 1.8 TSI | 08.2010 - 12.2014 |
| VW | PASSAT B7 (362) | 2.0 TSI | 11.2010 - 12.2014 |
| VW | PASSAT B7 Variant (365) | 1.8 TSI | 08.2010 - 12.2014 |
| VW | PASSAT B7 Variant (365) | 2.0 TSI | 11.2010 - 12.2015 |
| SKODA | SUPERB II (3T4) | 1.8 TSI | 03.2009 - 05.2015 |
| SKODA | SUPERB II (3T4) | 1.8 TSI 4x4 | 03.2009 - 05.2015 |
| SKODA | SUPERB II Kombi (3T5) | 1.8 TSI | 10.2009 - 05.2015 |
| SKODA | SUPERB II Kombi (3T5) | 1.8 TSI 4x4 | 10.2009 - 05.2015 |
| VW | SHARAN (7N1, 7N2) | 2.0 TFSI | 12.2010 - 11.2015 |
| SEAT | ALHAMBRA (710, 711) | 2.0 TFSI | 11.2010 - 05.2012 |
| SKODA | SUPERB II (3T4) | 2.0 TFSI | 05.2010 - 05.2015 |
| SKODA | SUPERB II Kombi (3T5) | 2.0 TFSI | 05.2010 - 05.2015 |
| AUDI | TT (8J3) | 2.0 TFSI | 05.2010 - 06.2014 |
| AUDI | TT (8J3) | 2.0 TFSI quattro | 05.2010 - 06.2014 |
| AUDI | TT Roadster (8J9) | 2.0 TFSI | 05.2010 - 06.2014 |
| AUDI | TT Roadster (8J9) | 2.0 TFSI quattro | 05.2010 - 06.2014 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.8 TSI 4x4 | 03.2009 - 02.2013 |
| SKODA | OCTAVIA II (1Z3) | 1.8 TSI | 03.2009 - 06.2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.8 TSI | 03.2009 - 06.2013 |
| VW | GOLF VI Cabriolet (517) | 2.0 GTI | 05.2012 - 05.2016 |
| AUDI | A6 | C7 (4G2, 4GC) 2.0 TFSI | 05.2011 - 09.2018 |
| SKODA | YETI (5L) | 1.8 TSI 4x4 | 11.2009 - 12.2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 2.0 TFSI | 12.2010 - 07.2014 |
| VW | TIGUAN (5N_) | 2.0 TFSI | 11.2007 - 07.2018 |
| VW | GOLF VI (5K1) | 2.0 GTi | 06.2009 - 11.2013 |
| VW | TIGUAN (5N_) | 2.0 TSI 4motion | 05.2011 - 07.2018 |
| VW | TIGUAN (5N_) | 2.0 TSI 4motion | 05.2011 - 07.2018 |
| AUDI | Q5 (8RB) | 2.0 TFSI Hybrid quattro | 06.2011 - 06.2016 |
| VW | PASSAT CC B6 (357) | 2.0 TSI | 11.2010 - 01.2012 |
| VW | PASSAT CC B6 (357) | 1.8 TSI | 11.2008 - 05.2010 |
| VW | BEETLE (5C1, 5C2) | 2.0 TFSI | 04.2011 - 07.2016 |
| AUDI | A6 C7 Avant (4G5, 4GD) | 2.0 TFSI | 06.2011 - 09.2018 |
| AUDI | Q3 (8UB, 8UG) | 2.0 TFSI quattro | 06.2011 - 04.2015 |
| AUDI | Q3 (8UB, 8UG) | 2.0 TFSI quattro | 06.2011 - 04.2015 |
| VW | PASSAT B7 (362) | 1.8 TSI | 02.2011 - 12.2014 |
| VW | PASSAT B7 Variant (365) | 1.8 TSI | 02.2011 - 12.2014 |
| VW | AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B) | 2.0 TSI | 12.2010 - 10.2016 |
| AUDI | A6 | C7 (4G2, 4GC) 2.0 TFSI | 03.2011 - 05.2013 |
| AUDI | A6 | C7 (4G2, 4GC) 2.0 TFSI hybrid | 11.2011 - 04.2015 |
| AUDI | A3 Sportback (8PA) | 2.0 TFSI | 09.2004 - 03.2013 |
| AUDI | A3 Sportback (8PA) | 2.0 TFSI quattro | 09.2004 - 03.2013 |
| AUDI | A3 (8P1) | 2.0 TFSI | 09.2004 - 08.2012 |
| AUDI | A3 (8P1) | 2.0 TFSI quattro | 09.2004 - 08.2012 |
| VW | GOLF V (1K1) | 2.0 GTI | 10.2004 - 02.2009 |
| VW | EOS (1F7, 1F8) | 2.0 TFSI | 03.2006 - 08.2015 |
| VW | JETTA III (1K2) | 2.0 TFSI | 10.2005 - 10.2010 |
| VW | PASSAT B6 (3C2) | 2.0 TFSI | 07.2005 - 07.2010 |
| VW | PASSAT | B6 Variant (3C5) 2.0 TFSI | 08.2005 - 11.2010 |
| AUDI | TT (8J3) | 2.0 TFSI | 08.2006 - 06.2010 |
| SKODA | OCTAVIA II (1Z3) | 2.0 TFSI | 10.2005 - 02.2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 TFSI | 10.2005 - 02.2013 |
| AUDI | TT Roadster (8J9) | 2.0 TFSI | 03.2007 - 06.2010 |
| AUDI | A3 (8P1) | 1.8 TFSI | 11.2006 - 08.2012 |
| AUDI | A3 Sportback (8PA) | 1.8 TFSI | 11.2006 - 03.2013 |
| AUDI | A5 (8T3) | 1.8 TFSI | 10.2007 - 01.2017 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.8 TFSI | 01.2007 - 07.2015 |
| VW | TIGUAN (5N_) | 2.0 TFSI 4motion | 09.2007 - 07.2018 |
| VW | TIGUAN (5N_) | 2.0 TFSI 4motion | 09.2007 - 07.2018 |
| SEAT | ALTEA (5P1) | 1.8 TFSI | 01.2007 - 07.2015 |
| SEAT | TOLEDO III (5P2) | 1.8 TFSI | 01.2007 - 05.2009 |
| AUDI | A4 | B8 (8K2) 1.8 TFSI | 11.2007 - 03.2012 |
| VW | GOLF V Variant (1K5) | 2.0 TFSI | 06.2007 - 07.2009 |
| AUDI | A3 Cabriolet (8P7) | 1.8 TFSI | 04.2008 - 05.2013 |
| AUDI | A3 Cabriolet (8P7) | 2.0 TFSI | 04.2008 - 05.2013 |
| AUDI | A4 | B8 (8K2) 1.8 TFSI | 01.2008 - 12.2015 |
| AUDI | A4 | B8 Avant (8K5) 1.8 TFSI | 11.2007 - 03.2012 |
| AUDI | A6 | C7 (4G2, 4GC) 2.0 TFSI quattro | 05.2012 - 04.2015 |
| AUDI | A6 | C7 (4G2, 4GC) 2.0 TFSI | 05.2013 - 09.2018 |
| AUDI | A6 | C7 (4G2, 4GC) 2.0 TFSI quattro | 05.2013 - 09.2018 |
| VW | PASSAT CC B6 (357) | 1.8 TSI | 06.2008 - 01.2012 |
| VW | CC B7 (358) | 2.0 TSI | 11.2011 - 12.2016 |
| AUDI | A4 | B8 (8K2) 2.0 TFSI | 06.2008 - 12.2015 |
| AUDI | A4 | B8 (8K2) 2.0 TFSI | 06.2008 - 05.2013 |
| AUDI | A4 | B8 (8K2) 2.0 TFSI quattro | 06.2008 - 12.2015 |
| AUDI | A4 | B8 Avant (8K5) 2.0 TFSI | 06.2008 - 05.2013 |
| AUDI | A4 | B8 Avant (8K5) 1.8 TFSI | 04.2008 - 12.2015 |
| VW | CC B7 (358) | 1.8 TSI | 11.2011 - 12.2016 |
| VW | PASSAT | B6 Variant (3C5) 1.8 TSI | 05.2007 - 10.2011 |
| VW | PASSAT B6 (3C2) | 1.8 TSI | 05.2007 - 07.2010 |
| AUDI | Q5 (8RB) | 2.0 TFSI quattro | 11.2008 - 09.2012 |
| SEAT | LEON (1P1) | 1.8 TSI | 06.2007 - 12.2012 |
| SKODA | OCTAVIA II (1Z3) | 1.8 TSI | 06.2007 - 04.2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.8 TSI | 06.2007 - 04.2013 |
| VW | SCIROCCO III (137, 138) | 2.0 TFSI | 05.2008 - 11.2009 |
| SKODA | SUPERB II (3T4) | 1.8 TSI | 03.2008 - 05.2015 |
| SKODA | SUPERB II (3T4) | 1.8 TSI 4x4 | 11.2008 - 05.2015 |
| AUDI | A4 | B8 Avant (8K5) 2.0 TFSI | 06.2008 - 12.2015 |
| AUDI | A4 | B8 Avant (8K5) 2.0 TFSI quattro | 06.2008 - 12.2015 |
| AUDI | TT (8J3) | 1.8 TFSI | 06.2008 - 06.2014 |
| AUDI | TT Roadster (8J9) | 1.8 TFSI | 06.2008 - 06.2014 |
| VW | PASSAT CC B6 (357) | 2.0 TFSI | 06.2008 - 01.2012 |
| VW | PASSAT ALLTRACK B7 (365) | 2.0 TSI 4motion | 01.2012 - 12.2014 |
| AUDI | A5 (8T3) | 2.0 TFSI | 11.2008 - 03.2012 |
| AUDI | A5 (8T3) | 2.0 TFSI | 06.2008 - 11.2013 |
| AUDI | A5 (8T3) | 2.0 TFSI quattro | 06.2008 - 01.2017 |
| AUDI | A4 | B8 (8K2) 1.8 TFSI quattro | 09.2008 - 03.2012 |
| AUDI | A4 | B8 Avant (8K5) 1.8 TFSI quattro | 09.2008 - 03.2012 |
| VW | PASSAT B6 (3C2) | 2.0 FSI | 08.2007 - 07.2010 |
| AUDI | A3 (8P1) | 1.8 TFSI quattro | 07.2008 - 08.2012 |
| AUDI | A3 Sportback (8PA) | 1.8 TFSI quattro | 07.2008 - 03.2013 |
| VW | GOLF VI (5K1) | 2.0 GTi | 04.2009 - 11.2012 |
| AUDI | A5 Cabriolet (8F7) | 2.0 TFSI | 03.2009 - 03.2012 |
| AUDI | A5 Cabriolet (8F7) | 2.0 TFSI | 03.2009 - 06.2014 |
| AUDI | A5 Cabriolet (8F7) | 2.0 TFSI quattro | 03.2009 - 01.2017 |
| AUDI | A4 Allroad B8 (8KH) | 2.0 TFSI quattro | 04.2009 - 05.2016 |
| AUDI | TT Roadster (8J9) | 2.0 TFSI quattro | 06.2008 - 06.2010 |
| AUDI | TT (8J3) | 2.0 TFSI quattro | 06.2008 - 06.2010 |
| AUDI | A5 (8T3) | 1.8 TFSI | 05.2009 - 09.2011 |
| AUDI | A5 Sportback (8TA) | 2.0 TFSI | 09.2009 - 06.2014 |
| AUDI | A5 Sportback (8TA) | 2.0 TFSI quattro | 09.2009 - 01.2017 |
| SEAT | LEON (1P1) | 2.0 TFSI | 06.2009 - 12.2012 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.8 TSI 4x4 | 11.2008 - 02.2013 |
| AUDI | Q5 (8RB) | 2.0 TFSI quattro | 08.2009 - 05.2017 |
| VW | SCIROCCO III (137, 138) | 2.0 TSI | 11.2009 - 11.2017 |
| VW | EOS (1F7, 1F8) | 2.0 TSI | 11.2009 - 08.2015 |
| SKODA | YETI (5L) | 1.8 TSI 4x4 | 05.2009 - 12.2017 |
| SKODA | SUPERB II Kombi (3T5) | 1.8 TSI | 10.2009 - 05.2015 |
| SKODA | SUPERB II Kombi (3T5) | 1.8 TSI 4x4 | 10.2009 - 05.2015 |
| VW | PASSAT | B6 Variant (3C5) 1.8 TSI | 11.2009 - 11.2010 |
| VW | PASSAT B6 (3C2) | 1.8 TSI | 11.2009 - 07.2010 |
| AUDI | A5 Sportback (8TA) | 1.8 TFSI | 11.2009 - 09.2011 |
| AUDI | A5 Sportback (8TA) | 2.0 TFSI | 09.2009 - 11.2013 |
| AUDI | A5 Cabriolet (8F7) | 1.8 TFSI | 09.2009 - 03.2012 |
| SEAT | EXEO (3R2) | 1.8 TSI | 09.2010 - 05.2013 |
| SEAT | EXEO (3R2) | 1.8 TSI | 05.2010 - 05.2013 |
| SEAT | EXEO (3R2) | 2.0 TFSI | 05.2010 - 05.2013 |
| SEAT | EXEO ST (3R5) | 1.8 TSI | 09.2010 - 05.2013 |
| SEAT | EXEO ST (3R5) | 1.8 TSI | 05.2010 - 05.2013 |
| SEAT | EXEO ST (3R5) | 2.0 TFSI | 05.2010 - 05.2013 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TFSI 4x4 | 05.2009 - 07.2015 |
| VW | GOLF VI (5K1) | 1.8 TSI | 06.2009 - 01.2011 |
| AUDI | Q5 (8RB) | 2.0 TFSI quattro | 05.2013 - 05.2017 |
| VW | BEETLE Cabriolet (5C7, 5C8) | 2.0 TFSI | 12.2011 - 07.2016 |
| VW | CC B7 (358) | 2.0 TFSI | 11.2011 - 12.2016 |
| VW | CC B7 (358) | 1.8 TSI | 11.2011 - 12.2016 |
| AUDI | A4 | B8 (8K2) 2.0 TFSI quattro | 11.2009 - 03.2012 |
| VW | PASSAT ALLTRACK B7 (365) | 1.8 TSI | 01.2012 - 12.2014 |
| VW | PASSAT ALLTRACK B7 (365) | 1.8 TSI | 01.2012 - 12.2014 |
| VW | GOLF VI Variant (AJ5) | 2.0 TFSI | 07.2009 - 07.2013 |
| SEAT | ALHAMBRA (710, 711) | 1.8 TSI | 11.2012 - 04.2015 |
| AUDI | A4 | B8 (8K2) 2.0 TFSI | 05.2013 - 12.2015 |
| AUDI | A4 | B8 (8K2) 2.0 TFSI quattro | 05.2013 - 12.2015 |
| AUDI | A4 Allroad B8 (8KH) | 2.0 TFSI quattro | 05.2013 - 05.2016 |
| AUDI | A5 Cabriolet (8F7) | 2.0 TFSI | 05.2013 - 12.2014 |
| AUDI | A5 Cabriolet (8F7) | 2.0 TFSI quattro | 03.2012 - 01.2017 |
| AUDI | Q3 (8UB, 8UG) | 2.0 TFSI quattro | 09.2014 - 10.2018 |
| AUDI | A1 (8X1, 8XK) | 1.8 TFSI | 02.2015 - 10.2018 |
| AUDI | A1 Sportback (8XA, 8XF) | 1.8 TFSI | 02.2015 - 10.2018 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TFSI | 05.2009 - 07.2015 |
| VW | PASSAT B7 Kasten/Kombi (365) | 2.0 TFSI | 11.2010 - 12.2014 |
| VW | SCIROCCO Van (137) | 2.0 TFSi | 11.2009 - 05.2014 |
| VW | GOLF VI Van (5K1_) | 2.0 GTi | 02.2009 - 11.2012 |
| VW | PASSAT B7 Kasten/Kombi (365) | 1.8 TFSi | 08.2010 - 12.2014 |
| Manufacturer | Comparison number |
|---|---|
| AUDI, SEAT, SKODA, VW | 6H103464L |
| AUDI, SEAT, SKODA, VW, VAG | 06H 103 464 L |
| VAG | 6H 103 464 L |
