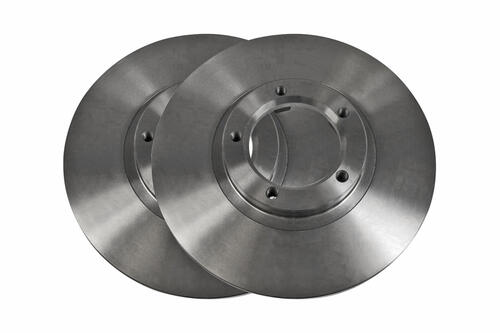

Brake Disc

V25-80011

Brake Disc
X-Ref1 514 234*
i. a. fitting forTransit
Fitting PositionFront Axle
Brake Disc TypeVented
Bolt Hole Circle Ø100 mm
Number of Holes5
Centering Diameter78.5 mm
Minimum Thickness22.2 mm
Brake Disc Thickness24.2 mm
Weight6.109 kg
Height43 mm
Thread SizeM 10
Diameter254 mm
Inner Diameter104 mm
9
26
Engine TypePetrol, Diesel
EAN4046001447310
Packaging unit2
Pallet quantity168
