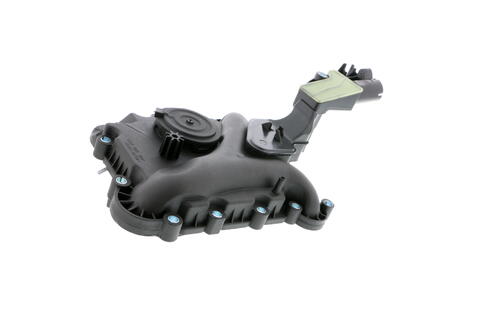

VAICO Oil Trap, crankcase breather

V10-3502
VAICO
preview

Login
VAICO Tech-Info
X-Ref 06E 103 547 P
Opening Pressure [bar] 0,03
Length [mm] 346
Valve type Breather Valve, Diaphragm Valve
Supplementary Article/Supplementary Info with seal
Width [mm] 190,0
Operating Mode Electrically Controlled
Observe the vehicle manufacturer specifications Ja
Seal Material FPM (fluoride rubber)/ACM (polyacrylate rubber)
Fitting Position Cylinder Head
Observe technical data Ja
Recommended change interval [km] 60000
Height [mm] 128
Recommended change interval [years] 3
Observe service information Ja
Housing material Polyamid 6.6
Weight [kg] 1,14
Article Description Original VAICO Quality
EAN 4046001662836
